Porsche Crest Innovate LM2?

Has anyone used/installed a LM2 yet?

I have ordered one to install and was wondering where others have installed them and also the best place to hook up the inputs.

I am thinking of getting an aftermarket MAP sensor for logging boost but where is the best place to hook up to log RPMs?

I am hoping to log AFRs, RPMs and boost and try to figure out some tuning issues.

__________________
Ben
'85 930 - Black on Black
'95 993 Turbo - Silver
Old 11-24-2008, 07:12 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #1 (permalink)
Registered User

tj930's Avatar

Join Date: Jun 2008
Location: England
Posts: 301
Doh!

I've just bought one of these today and was searching for some edifying postings/threads on here.

Ben, did you manage to get everything figured out?
Old 04-01-2010, 11:47 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #2 (permalink)
Registered User

Join Date: Mar 2000
Location: Auburn,In. U.S.A.
Posts: 2,449
BEN,

I have a LM 1 and I use a GM 3Bar MAP you can find them on Ebay pretty reasonably the GM P# is 12223861 and you can get the proper connector from MSD for $8.50 MSD P# 8172

Cole
__________________
Cole - 80 930 "The Old Sled"
Mods: TurboKraft Custom IC, 934 Headers, GSX 61, Zork, Port Work, SC Cams, Air Mod Fuel Dist Relocated, Water Meth Injection, BL WUR, MSD 6530, Greddy EBC, Synapse Bov, Short 2nd & 3rd with 8:37 R&P, Wevo Shifter, Coupling, and Mounts, MTX-L SSI-4, Big Brakes, Rebel Coilovers, Bilstein Sports.
Old 04-01-2010, 02:20 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #3 (permalink)
Crotchety Old Bastard

RarlyL8's Avatar

Join Date: Jan 2000
Location: Huntsville, AL
Posts: 14,390
Garage
I've had a devil of a time with my LM-1. I have only used it for AFRs in the past and want to log boost, fuel pressure and RPMs. I can't get the damned thing to produce a good graph. The instructions are crap and I can't get any help on the "help" line.
Help?
I think I have a grounding problem with the accessory cable. Anyone else using one of these?
__________________
RarlyL8 Motorsports / M&K Exhaust - 911/930 Exhaust Systems, Turbos, TiAL, CIS Mods/Rebuilds
'78 911SC Widebody, 930 engine, 915 Tranny, K27, SC Cams, RL8 Headers & GT3 Muffler. 350whp @ 0.75bar
Brian B. (256)536-9977 Service@MKExhaust Brian@RarlyL8
Old 04-01-2010, 06:34 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #4 (permalink)
Registered User

Join Date: Apr 2007
Location: Auckland, New Zealand
Posts: 42
Garage
Lm-2

I used a GM 3 bar map sensor,and an LC-1 and XD-16 gauge to read AFRs. It is important to ground everything via a single point as they recommend. I have an LM-2 to log AFRS/RPMs/boost. I took my boost signal off the wastegate supply.


Old 04-01-2010, 08:50 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #5 (permalink)
Registered

9dreizig's Avatar

Join Date: Jul 2005
Location: Reno NV, Bay Area during most weeks,, Kids still in NH
Posts: 5,888
Send a message via AIM to 9dreizig
I agree with you Brian. I think the rpm and analog inputs section sucks.. Noisy as hell
__________________
"Todd"
98 Tahoe ,2007 Saturn Vue
86 930 black and stock, 80 930 blue tracdog
91 Spec Miata (yeah I race a chick car)
"life"ll kill ya" Warren Zevon
Old 04-01-2010, 09:03 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #6 (permalink)

Registered User

Join Date: Mar 2000
Location: Auburn,In. U.S.A.
Posts: 2,449
I'm running the LM-1 wired in the car, I have a 100psi Pressure Transducer, RPM, O2 sensor, and 3 Bar MAP. I used the LM2-A which is the Innovate RPM aux cable for all the inputs. I also added a Greddy Boost Controller, an AFR display, and a MSD 6AL-2 programmable ignition. I put a mounting plate under the pass. seat and tied everything together there. The one thing that was stressed for all these additions was a good ground. I ran a seperate ground wire from the neg. batt. terminal to a mounting plate ground bar and then to the rear chassis ground lug behind the fuel filter. This way all the different components are grounded to the Neg. Batt treminal and all the signals are very clean. My engine is out so I haven't been able to do any programming yet but I can find all the inputs on the LM-1. I would stress that direct ground connection to make sure all the devices have a direct ground path.

Brian: I got the wastegates torn down and one diaphram had a small hole. The other 2 are good. If you need a diaphram for your car I'll send my spare, if you were just looking for a spare I'd rather keep it. I have 2 springs to send you I believe one is 1.0 and the other is stock. I couldn't check them so I can't say that is exactly correct. Let me know on the diaphram, if it's to get you going it's yours.

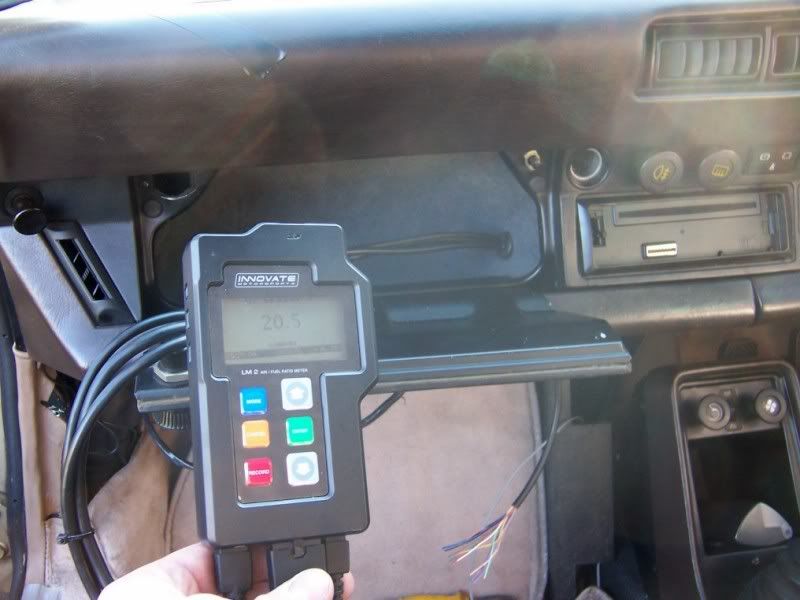

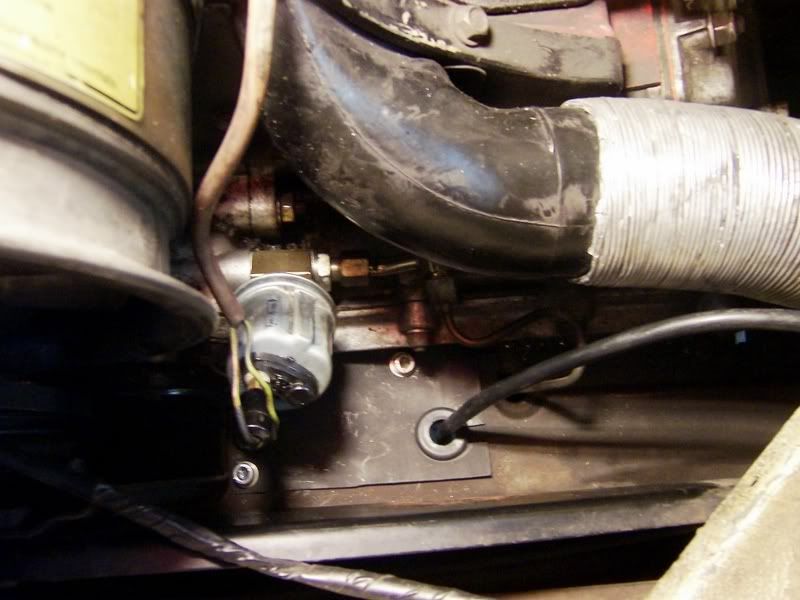

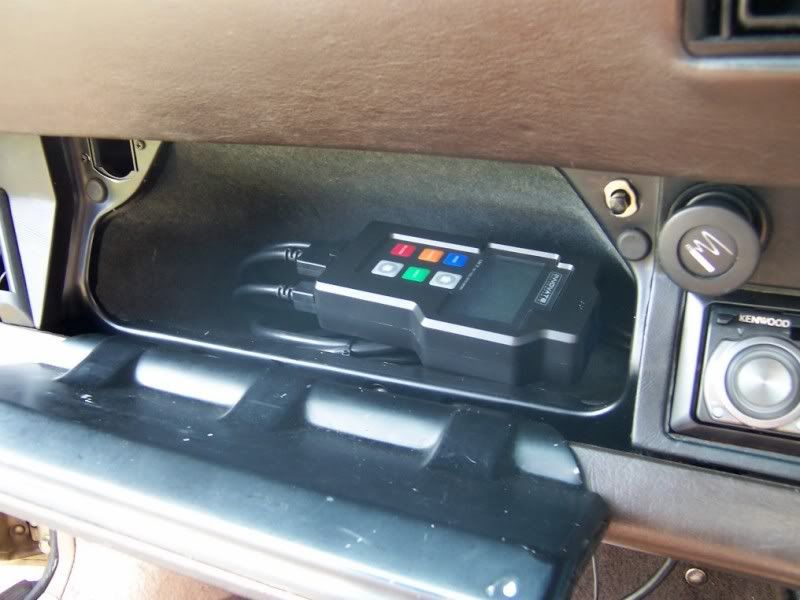

Here are some pics.of the install:















Cole
__________________
Cole - 80 930 "The Old Sled"
Mods: TurboKraft Custom IC, 934 Headers, GSX 61, Zork, Port Work, SC Cams, Air Mod Fuel Dist Relocated, Water Meth Injection, BL WUR, MSD 6530, Greddy EBC, Synapse Bov, Short 2nd & 3rd with 8:37 R&P, Wevo Shifter, Coupling, and Mounts, MTX-L SSI-4, Big Brakes, Rebel Coilovers, Bilstein Sports.
Old 04-01-2010, 09:46 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #7 (permalink)
Certified User

billjam's Avatar

Join Date: Aug 2007
Location: Perth, Western Australia
Posts: 2,004
Garage
Quote:
Originally Posted by Helmsy View Post
Has anyone used/installed a LM2 yet?

I have ordered one to install and was wondering where others have installed them and also the best place to hook up the inputs.

I am thinking of getting an aftermarket MAP sensor for logging boost but where is the best place to hook up to log RPMs?

I am hoping to log AFRs, RPMs and boost and try to figure out some tuning issues.
Ben,
I can't help with LM2 but FWIW I have LC-1, LMA-3 (aux box) and G5 AFR gauge installed and working fine. I mounted the LMA-3 under the RH seat. The LC-1 (for the O2 sensor) is in the LH side of engine bay. Let me know if you want pics.
LMA-3 has a MAP input port direct from the manifold so I didn't have to setup an electronic sensor, which is convenient.
I had a few problems getting it all working properly and eventually sent the LMA-3 back to Innovate for repairs, after which it was fine. I can log MAP, AFR, RPM, acceleration and side G. I have another input connected to speedo sensor but can't get it calibrated properly.
I have wiring diagram as fitted in my car if you want, but I expect LM2 may be different. Still, it may give you some ideas if you are starting from scratch.
__________________
Bill
1988 Carrera - 3.6 engine (with ITBs, COPs, MS3X) and a whole set of turbo body panels waiting in the attic.
Day job ... www.sspowdercoat.com.au
Memories: '68 912, '72 911T, '80 911SC, '84 911, '85 930, '86 930, '87 911
Old 04-02-2010, 04:47 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #8 (permalink)
Registered

Dr J's Avatar

Join Date: Apr 2008
Location: Miami
Posts: 794
I got a unit too. Got the AFR's to work (after calibration of the system). I tried the rpm but it is not working yet. In my car I took the signal from the electromotive unit (which works on the stock tach). I only hooked up the + cable. Will try a potentiometer on it next. Tried it on a miata and the rpms worked there. Also tried one analog signal (+) but it didn't work either. Right now the "big" project is breaking in the engine, so the LM2 is secondary for now.
__________________
1979 SC, Slant nose wide-body cab conversion. AEM Infinity EFI, COP, supercharged!
Old 04-02-2010, 03:56 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #9 (permalink)
Registered User

flatsix777's Avatar

Join Date: Apr 2007
Location: London, England
Posts: 11
I installed an LM-2 a while back and log AFR, RPM, Boost, Oil Pressure and Oil Temperature. It’s not “plug and play” as you need to get a very clean RPM feed and also reduce the signal voltages on the other sensors. I used the stock boost sensor and it works fine, although it's obviously reading boost before the throttle plate so gives a slightly different reading to my mechanical guage. The LM-2 has generally been fine but does freeze occasionally. I used an 18ft cable and have the unit in the glovebox.




For RPM I started by trying to use the tach signal out of the CDI (Blk & Violet) but this was useless and so in the end I hooked it up straight to the coil (-ve terminal). This produced a very random & unstable reading so I used miniature co-axial cable with a steel shield (earthed at either end) to clean it and then smoothed it by running the signal into the LM-2 through a 1M potentiometer, acting as a voltage divider. By tuning the pot you can damp out the spikes leaving a stable output. You need to configure the LM-2 in the relevant sub-menu; settings aren’t very clear but the ones I’m using are:
• Falling edge (you have a choice of rising or falling edge on the configuration menu.)
• Cal 6 – 3 pulses per cycle (you have around half a dozen choices to configure to different numbers of cylinders).

The three potentiometer terminals are connected up as follows:
• The two outer ones go to ground (same place as the earth for the LM-2 power supply) and to the tach signal (from co-ax) respectively. Doesn’t matter which way round.
• The middle terminal goes to the LM-2 analogue feed (RPM +ve Blk/Wht)
• The co-ax shield goes to the common earth and the LM-2 RPM –ve input (Blue) also goes to common earth.

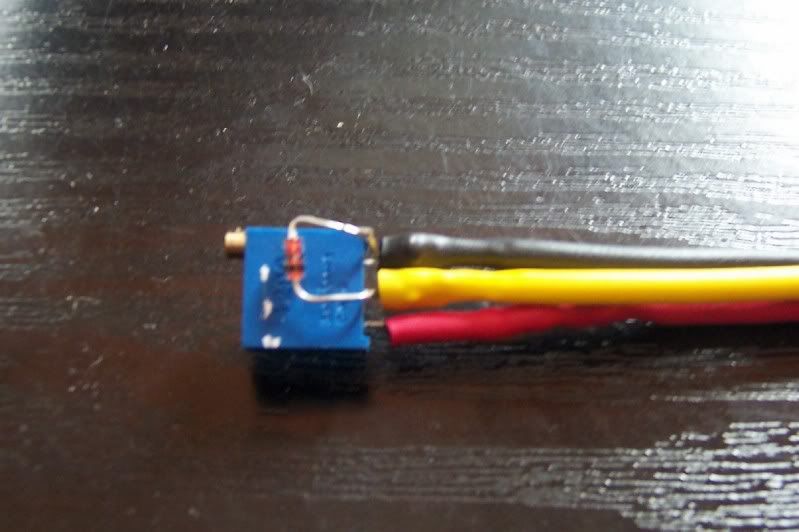

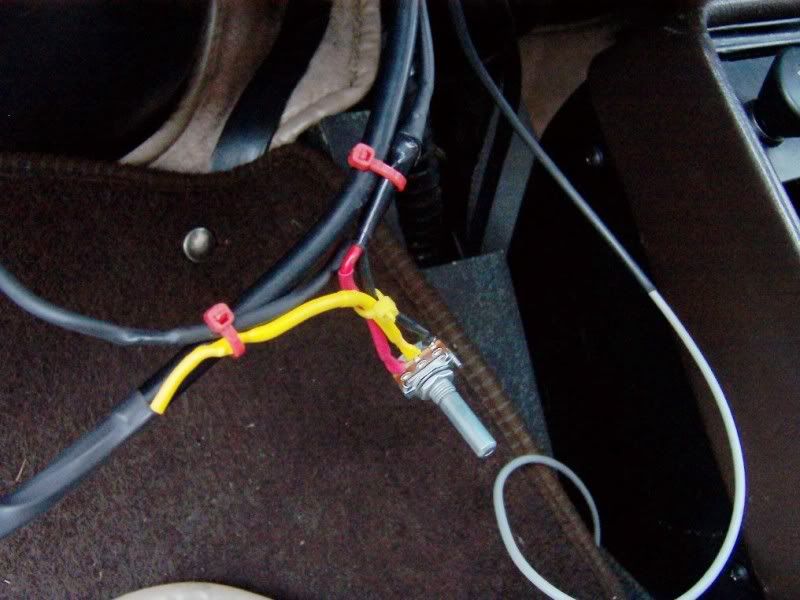

Mine looks like this:

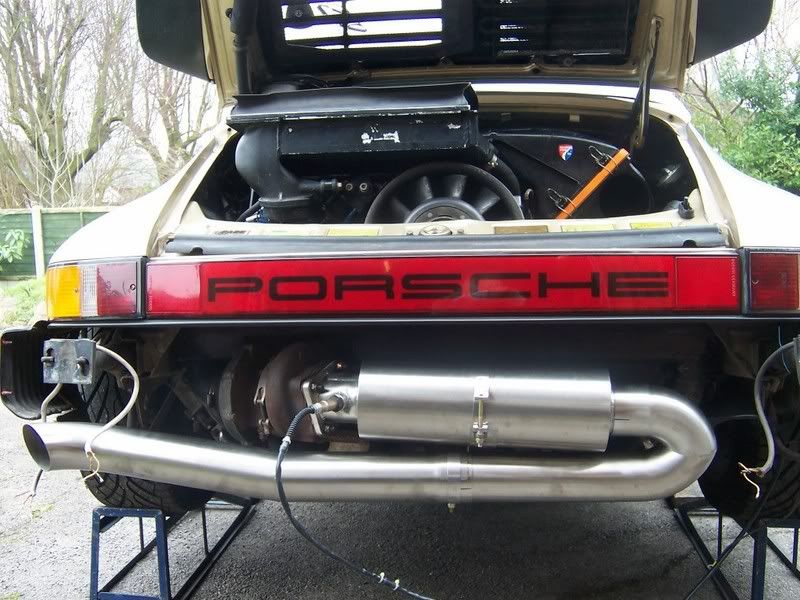

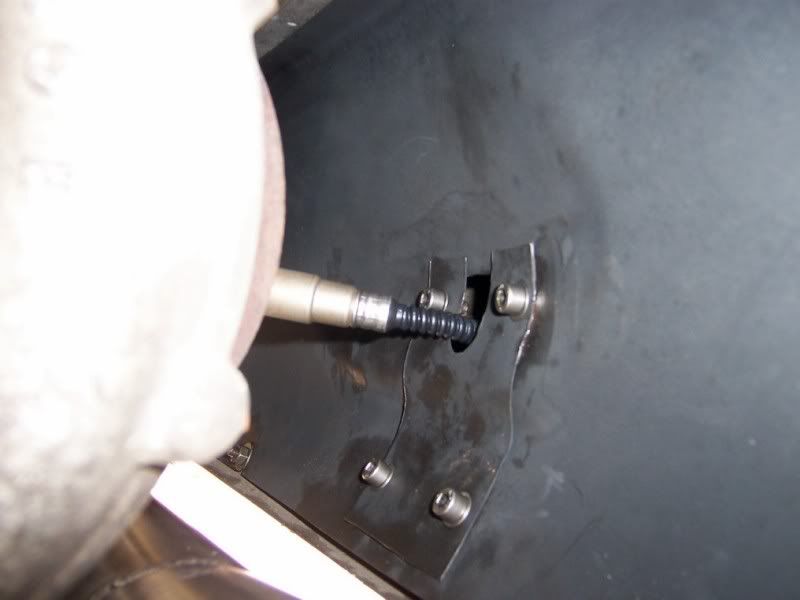

The AFR signal was straight forward:





I took signals from the sensors for boost, temperature and pressure into the available analogue inputs on the LM-2. The difficulty is that the LM-2 can only accept a 0-5V input so it’s necessary to reduce voltages. I used a 10K pre-set potentiometer for each signal, a 5.1V 0.5W Zenner diode on the output to the LM2 (between output & earth) to protect it from any spikes above 5V and also a 1K 0.6W resistor in series on the input to the pot. I simply followed a diagram in the LM-2 manual. It's then just a matter of setting the pot to give the right ratio reduction; in my case 49% reduced for temp and 36% for oil. Here's what the reducer looked like:

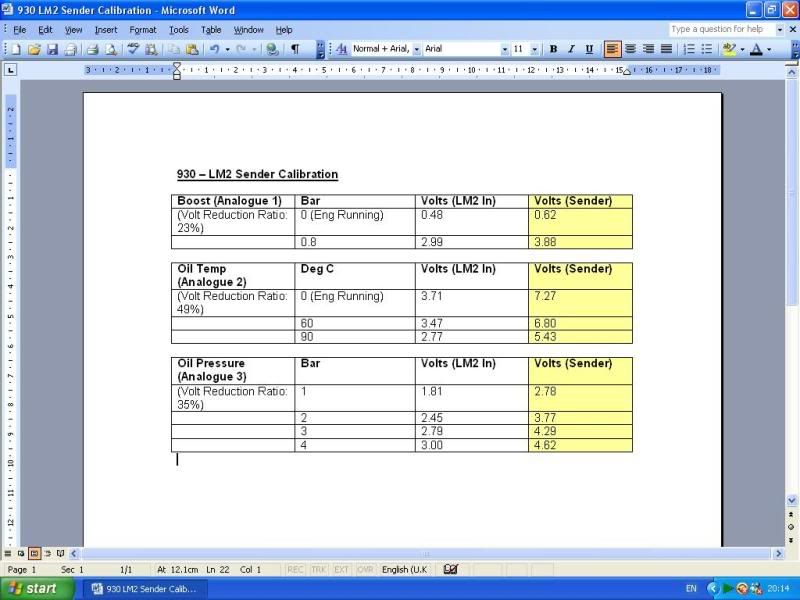

Calibration data that I used is as below:

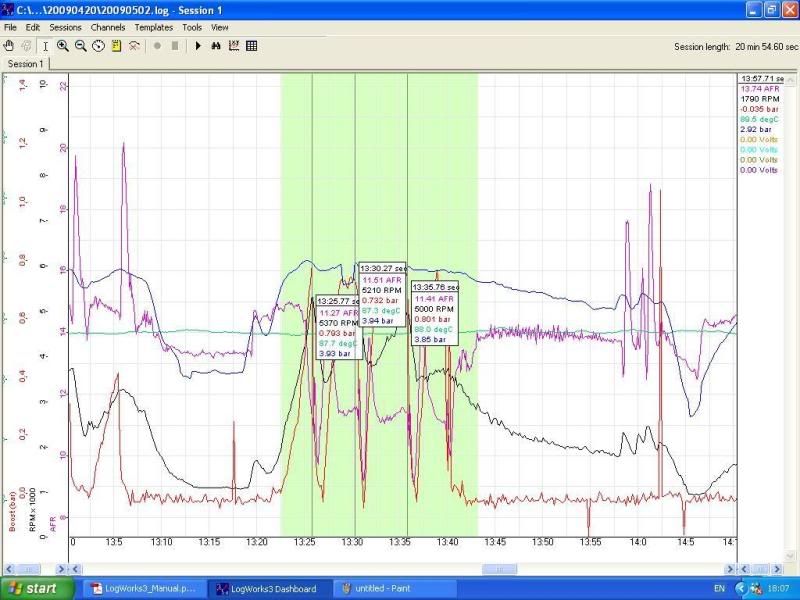

Here’s a screen shot of data in logworks:
