Post Your Engine Pics

[Raynald]

Hello

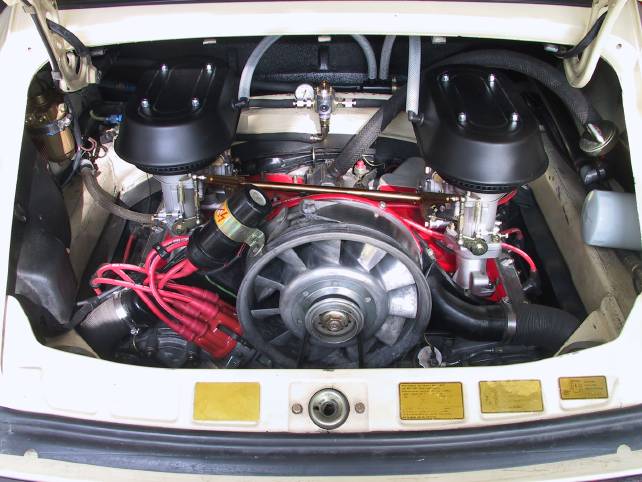

this is my engine a 2.7 liter,
my winter project is to convert to RS spec. with new pistons and S cams... and recurve the distributor or finding a new RS dizzy...


Raynald

[EWPurdy]

Fishcop,
Here's a little better picture:



It's a Mallory bypass regulator - however I'm getting ready to swap it out for the Holley 1-4 PSI version. The Mallory is rated for 3-12psi and so the adjustment is almost all the way screwed out to keep the pressure near 3.5 PSI. I'm going with the Holley so that the desired pressure is in the heart of the regulator's operating range. I'm also going to plumb the system so that the fuel flows in a continuous loop through both carbs prior to entering the regulator. This will allow the constant flow of cool fuel through the carbs - just an added benefit where I live in So. Texas (HOT!).

[kstylianos]

Almost a year ago. Wish it still looked like this.

[jpahemi]

Charlie:
What bracket did you use to secure the muffler to the engine mount?? I'm talking about the bracket that the muffler band go around.
Regards,
J.P.

[kstylianos]

J.P.,

There is a small bracket that attaches to the crank pully cover via a couple bolts. It has a couple of 'ears' that the muffler bands go around and help sinch the muffler to the engine.

[jpahemi]

Charlie:
Is it a 73-74 part or a late model part # (SC or Carrera)?
Thanks,
J.P.

[kstylianos]

This is an 82 SC engine. The bracket was installed from the factory.

Don't know if the earlier cars had a different type bracket.

[KobaltBlau]

jwerion, that almost looks like a titanium exhaust too...

In any case, beautiful motor!

[adamred]

I borrowed Paul Brewer's image for a quick question as my car is of the same vintage. Can someone please tell me the "official" names or part numbers for these two hoses. My are totally shot...

Thanks

Thanks.

Adam

[jpahemi]

911 211 272 02(hose) for accordian hose on left and 911 211 522 00(heater hose) for flex hose.
Regards,
J.P.

[rattlsnak]

Heres a couple..

The way my '72 came...



the SC with EFI..



The C2Turbo...



The 993 engine awaiting placement into the 72..

[smestas]

A pic of my 3.0L rebuild.

[dwightp]

All impressive.

[jpahemi]

Big Rubber:
Ok, here goes. These are the parts I used to back date my 3.2 with SSI exhaust.
Dizzy side heat duct modified by the Master John Walker:

This shot shows the stock part and John's modified duct:

Here's the passenger side all metal duct (early one piece type):

iInside shot:

Rear engine tin with OEM duct hole covered:

Side valve tin, replacing one piece unit with two piece type (this isn't needed for pre 84 911 w/3.2):

You wil notice I moved the O2 sensor grommet closer to the location were it mounts on the SSI.
Final look on 3.2 w/o A/C:


Hope this makes sense.
Regards,
J.P.

[Jandrews]

'73 2.4S built to 2.7RS Specs with MFI. Boat-tailed mains, moon cut cylinders, knife-edged crank, Raceware rod bolts all hooked up to a 911/01 trans:

[cstreit]

Not as nice as most of these but...

[bigrubberjeep]

Thank you JP, I hate to aks but do you know the part #'s?

[RoninLB]

[RoninLB]

pre carbs.. Imron black is somewhere ?

[RoninLB]

found another oldie. Has eng elec blower.
