Factory Alignment specs
http://forums.pelicanparts.com/uploa...1238606264.gif


993 measuring points
http://forums.pelicanparts.com/uploa...1238606304.jpg

964 measuring points
http://forums.pelicanparts.com/uploa...1238606337.jpg

Here's some info on what the factory thought was good for a 993 race car, in this case a '97 GT2 Evo
http://forums.pelicanparts.com/uploa...1239366648.gif

964RS shock mount
http://forums.pelicanparts.com/uploa...1240228087.gif

http://forums.pelicanparts.com/uploa...1240228105.gif

993RS shock mount
http://forums.pelicanparts.com/uploa...1240228209.gif

http://forums.pelicanparts.com/uploa...1240228452.gif
http://forums.pelicanparts.com/uploa...1240228482.gif

993RS suspension
http://forums.pelicanparts.com/uploa...1240228566.jpg


http://forums.pelicanparts.com/uploa...1240228606.jpg


993GT2EVO/RSR suspension
http://forums.pelicanparts.com/uploa...1240228642.jpg

Bill- Are the 993 RS front struts of the monotube or dual tube design? I can't tell with the rubber boots on the strut.

The RS are monotube Bilstein

http://forums.pelicanparts.com/uploa...1240242760.jpg

Have you got any pics of the 964Cup or RS strut tops?

Sure, here are some pictures of the 964 RS and Cup parts. I will take some pictures of 964 RSR front and the 964 Cup rears when I can get them out of storage around here.

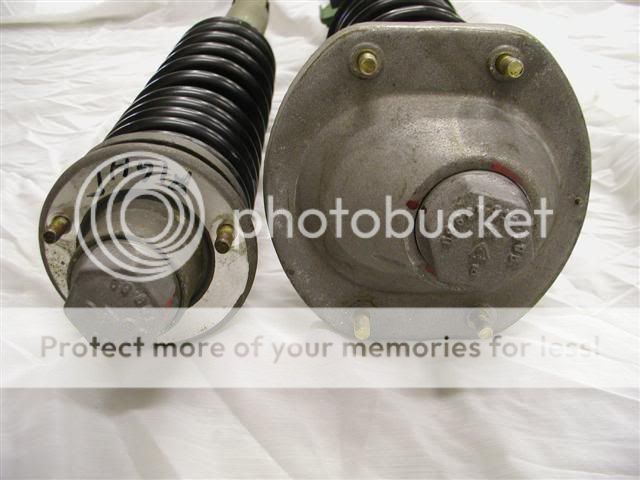

Below are the front and rear 964 RS suspension mounts:

http://i541.photobucket.com/albums/g...oballSmall.jpg

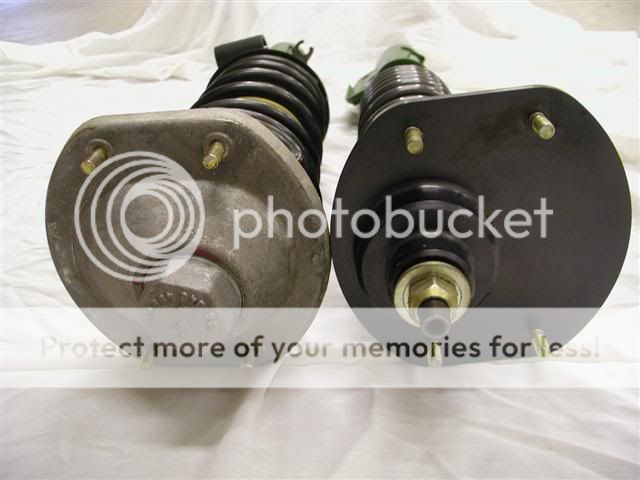

Below are the 964 RS (left) and 964 Cup (right) front suspension tops. The Cup part mounts the pivot point more toward the center of car for more negative camber.

http://i541.photobucket.com/albums/g...frontSmall.jpg

964 RS front strut mount disassembled:

http://i541.photobucket.com/albums/g...oballparts.jpg

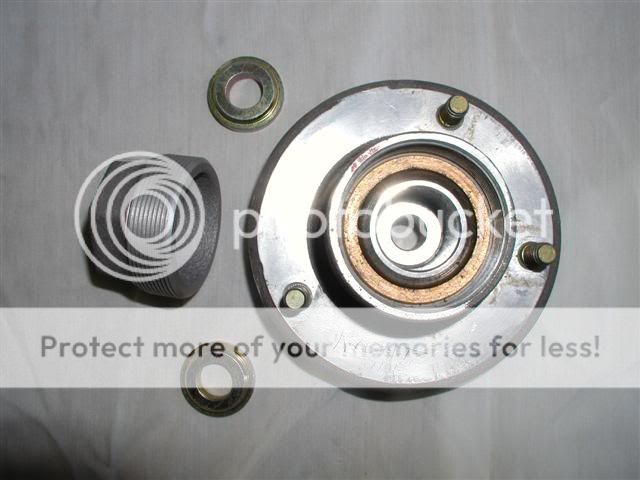

Rear RS shock mount disassembled (964 RSR is same, but with a hollow cap nut):

http://i541.photobucket.com/albums/g...rnalsSmall.jpg

Front strut rod of 964 RS showing smaller, Bilstein dual tube shock design rod:

http://i541.photobucket.com/albums/g...rutrodSmal.jpg

Front strut rod of 964 Cup showing the larger, Bilstein monotube shock design rod:

http://i541.photobucket.com/albums/g...utrodSmall.jpg

That's great, Thanks!

Here's a brand new out of the box 993RS set
http://forums.pelicanparts.com/uploa...1240262526.jpg

As promised, the rest of the 964 racing mounts, it took me a while to find the stuff. Here goes:

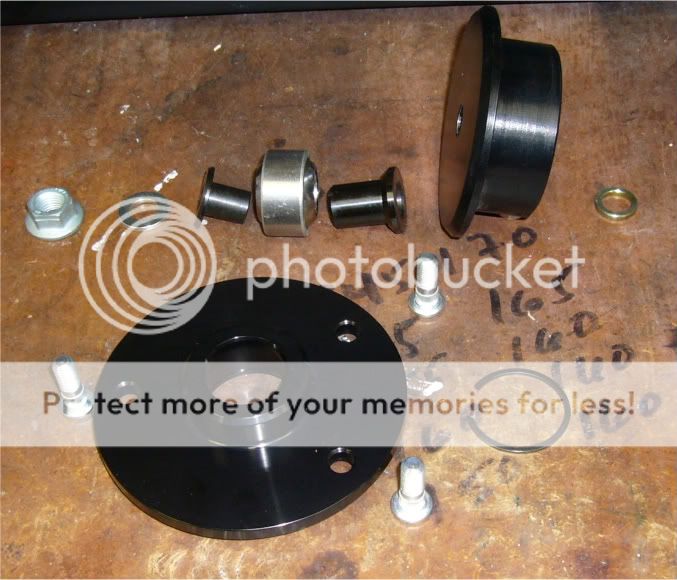

Below is an unassembled 964 Cup rear shock mount. The parts for the monoball are laid out left to right as they go top to bottom; I show the spring perch here for clarity since the small washer goes under it. The two tubular pieces on each side of the monoball telescope together within the monoball. The circlip is to retain the monoball into the plate and the studs are pressed into the plate.

http://i541.photobucket.com/albums/g...964CupRear.jpg

Below is a 964 RSR front shock mount. Note similarity to 993 RS mount Bill shows above which is a sealed version of the RSR below.

http://i541.photobucket.com/albums/g...r/RSRFront.jpg

Thanks!

So the Modes are copies of the RSR's

Here is a Mode that I just installed on my 993
http://forums.pelicanparts.com/uploa...1241271399.jpg

http://forums.pelicanparts.com/uploa...1241271426.jpg


http://forums.pelicanparts.com/uploa...1241271481.jpg

and the original JIC
http://forums.pelicanparts.com/uploa...1241271522.jpg

Modes are a very good copy too, here is underside of 964 RSR Front. Although it looks like Porsche used the same casting for the center as the rear mount (shown here below), the number on the casting is different.

http://forums.pelicanparts.com/uploa...1241276032.jpg

Here is RSR rear which is same as RS but with hollow top nut.

http://forums.pelicanparts.com/uploa...1241276049.jpg
