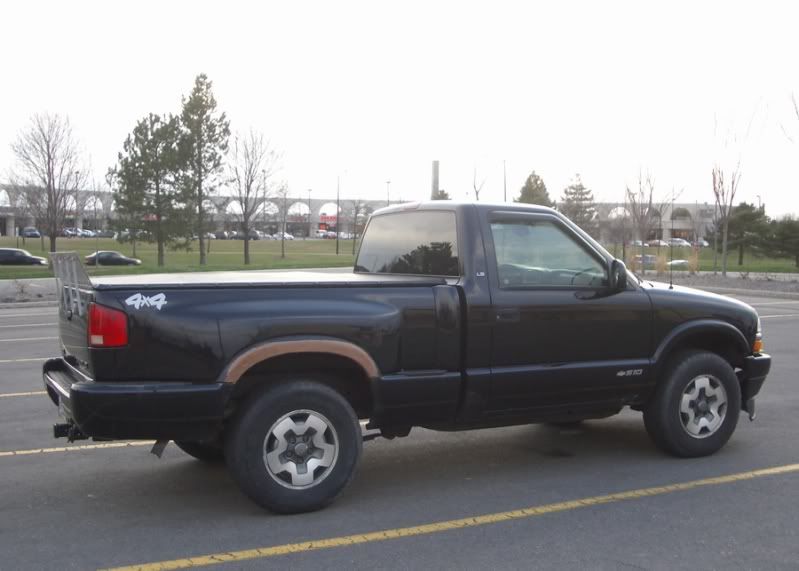

Rear Spoiler on Pick Up Truck - Experiment

Rear Spoiler on Pick Up Truck - Experiment
A continuation of the fooling around in aerodynamics which started with the chin spoiler, this phase may upset Dan Gurney (Gurney Flap inventor), so I apologize now.

Status:
It was on for two or three weeks, I have since cut it down to half the height.

Inspiration:
NASCAR Craftsman Truck Series (I've never seen one in person).

Pros:

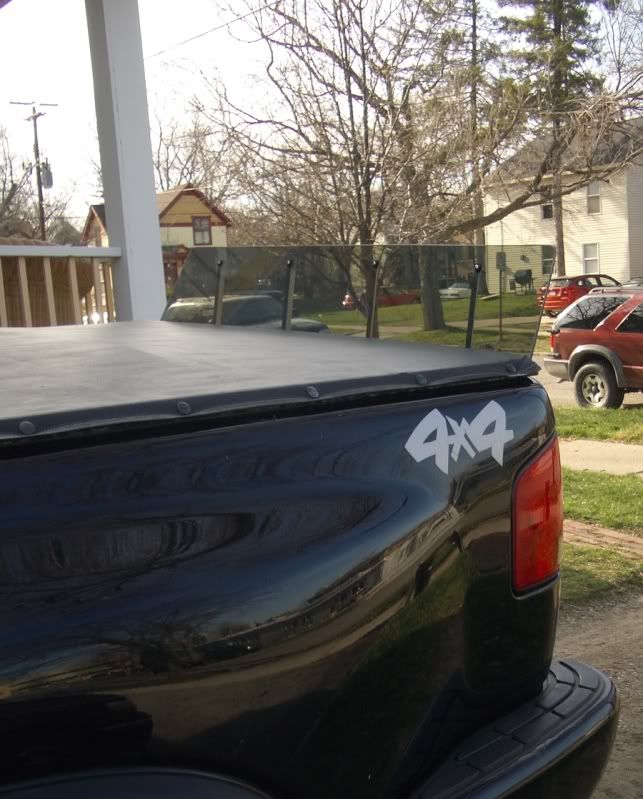

Incredible down force, not just at the rear, over the whole truck. Driving in a heavy rain at highway speeds was as calming as it could be.

Highway steering used to float with the typical power steering hypersensity, no more - this truck tracks true and straight, the effects of which can be felt at speeds as little as 30 mph.

I laughed at side winds, bring it on!

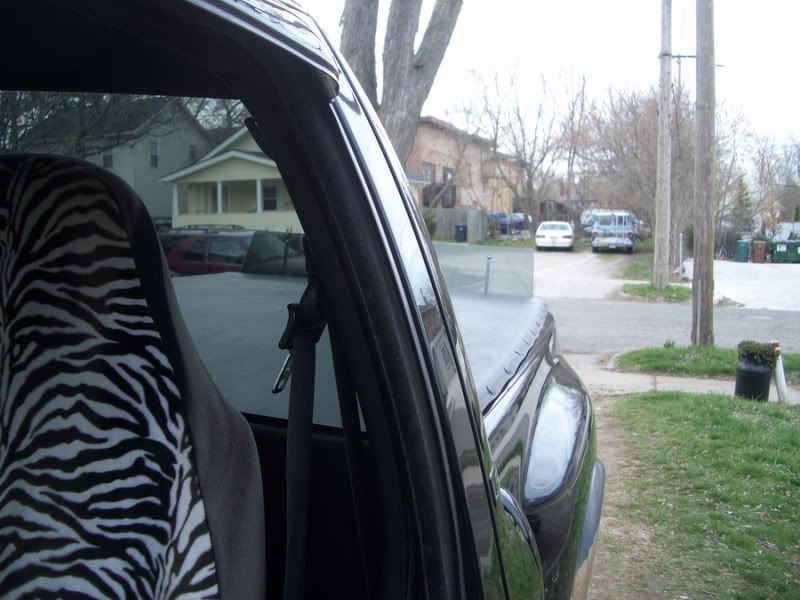

You could see though the spoiler, good for backing up and headlights from cars following to close were automatically dimmed.

I could still use the tailgate, in fact I helped a friend move, several trips and four other people not familiar with it somehow did nor break it off.

Cons:
You could feel the drag, like towing a boat without the front wheels getting iffy.

The faster you went, the more you could feel the down pressure build, like a giant child pressing his toy car down too hard.

Gas mileage was hurt, I don't know exactly how much because my driving routine was interrupted too many times and I installed a tonneau cover which is alleged to net a fuel savings of 3% to 9%.

I looked and felt like a red neck speed racer boy, I did get a guilty kick out of it most of the time though.

Pictures:
http://s184.photobucket.com/albums/x295/kach22i/S10%204x4%20Pick%20Up/?start=0



__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:18 PM
  Pelican Parts Technical Article Directory    Reply With Quote #1 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage

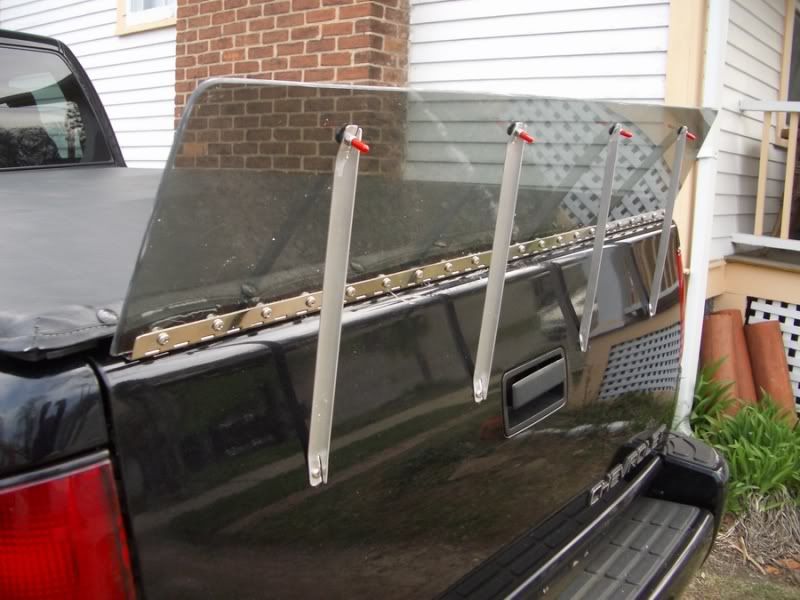

More Pictures:

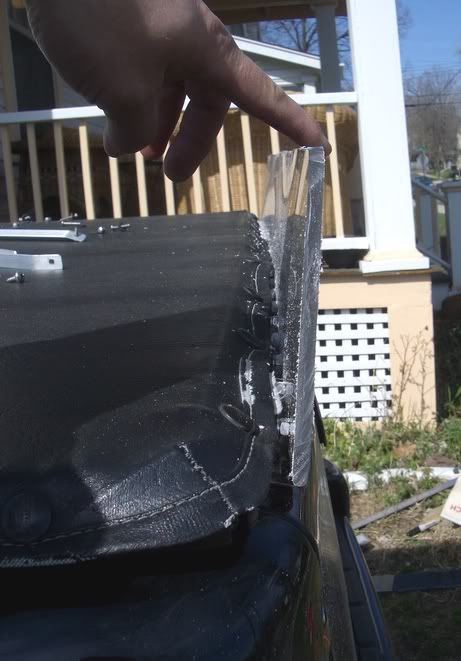

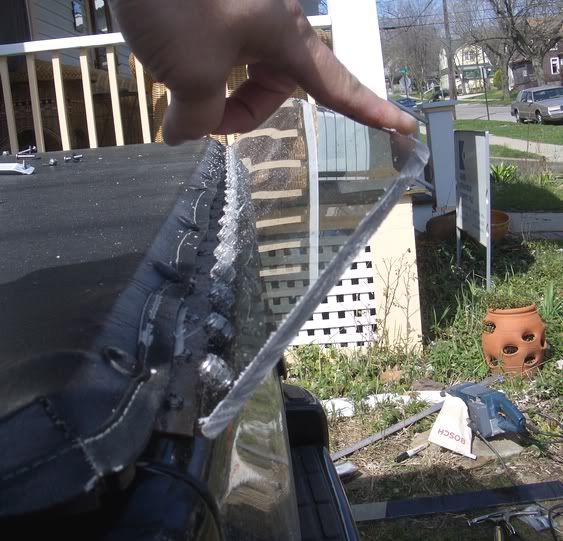

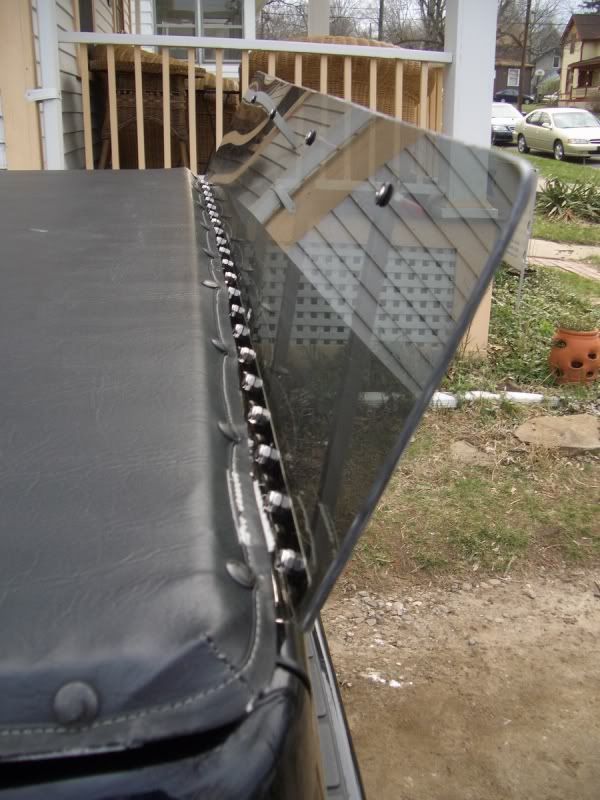

It opens - a test before the struts were put in.

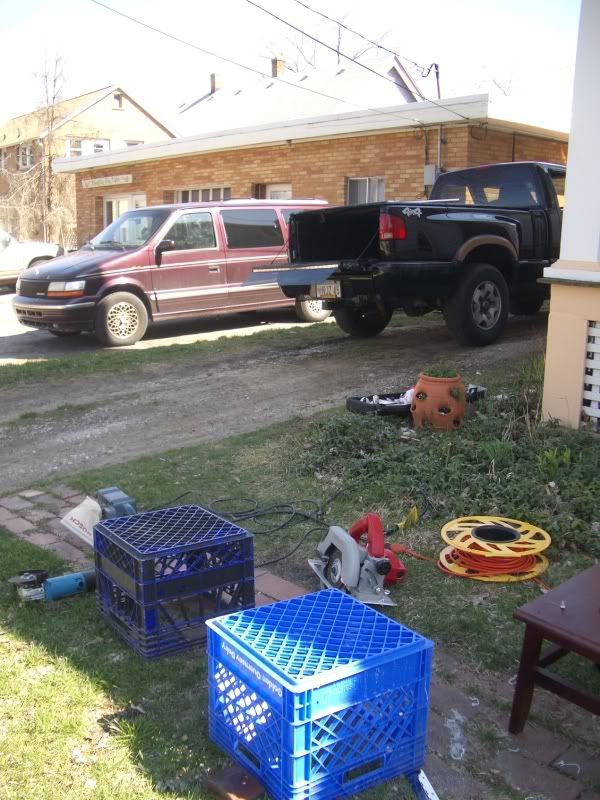

Common tools for working with the tinted acrylic, composite blades and sand paper.








__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:19 PM
  Pelican Parts Technical Article Directory    Reply With Quote #2 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage

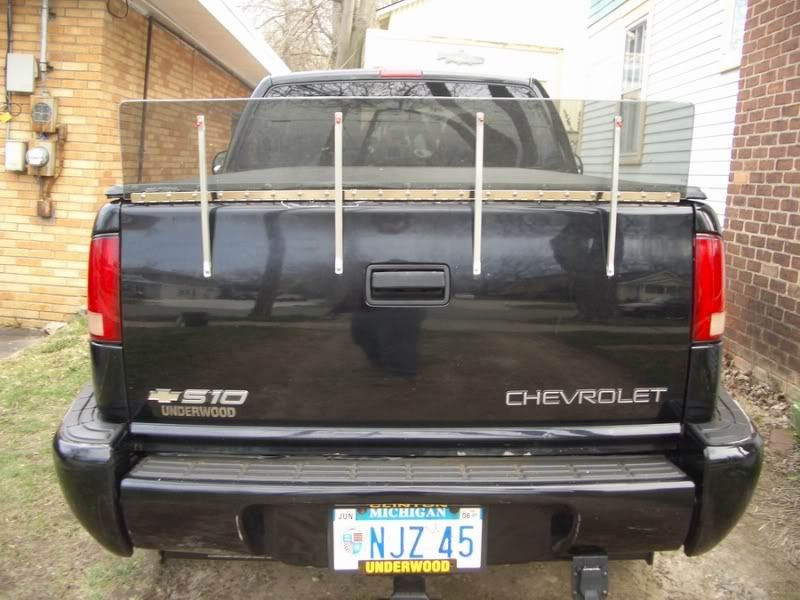

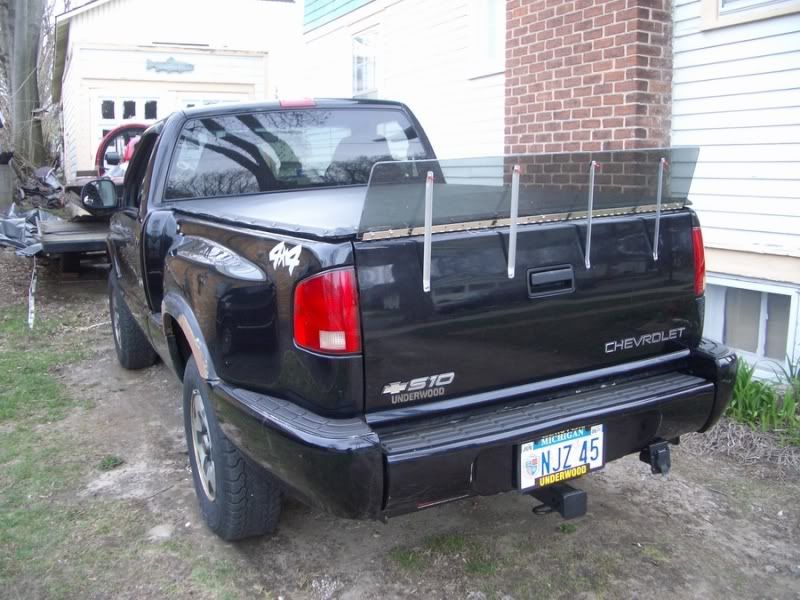

More and more pictures.

__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:20 PM
  Pelican Parts Technical Article Directory    Reply With Quote #3 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage

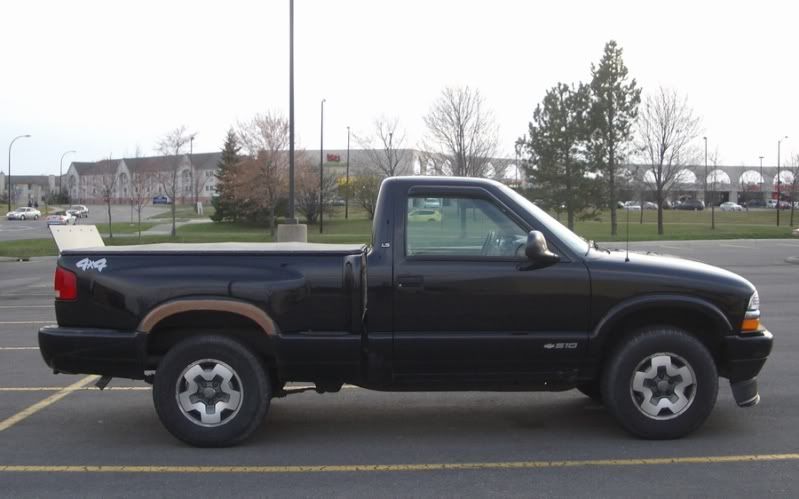

PHASE III.....the cut down.

I marked the cut line with a magic marker, and plugged the lower strut holes with rubber automotive plugs/fasteners.

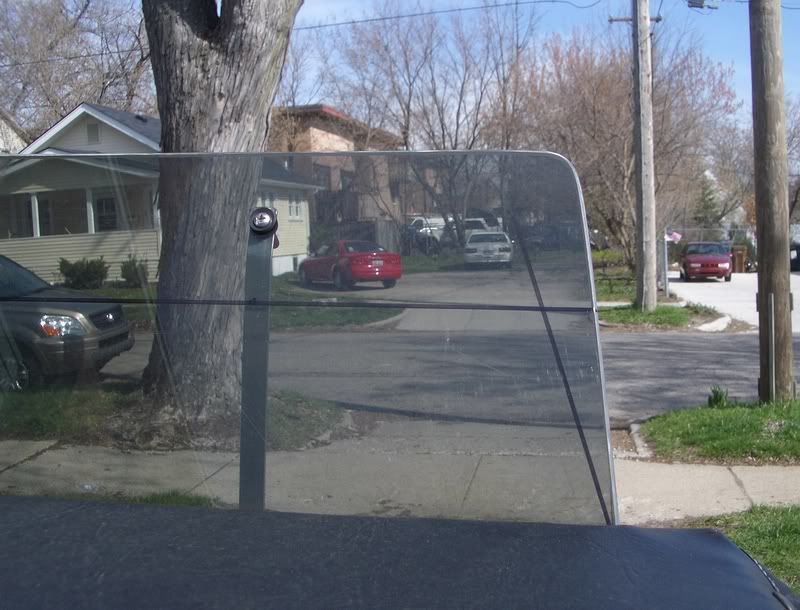

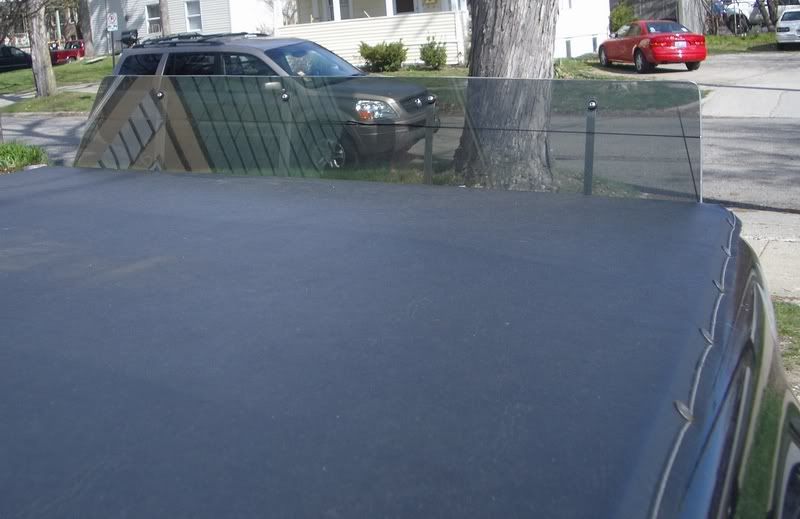

Cut down and trimmed.




The play with the removable cotter pins for tailgate use (moderate pressure).



Fooling with a spare aluminum channel, rethinking the piano hinge which is already rusting.
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:21 PM
  Pelican Parts Technical Article Directory    Reply With Quote #4 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage
Video of play:
http://s184.photobucket.com/albums/x295/kach22i/S10%204x4%20Pick%20Up/?action=view&current=IMGP8441.flv

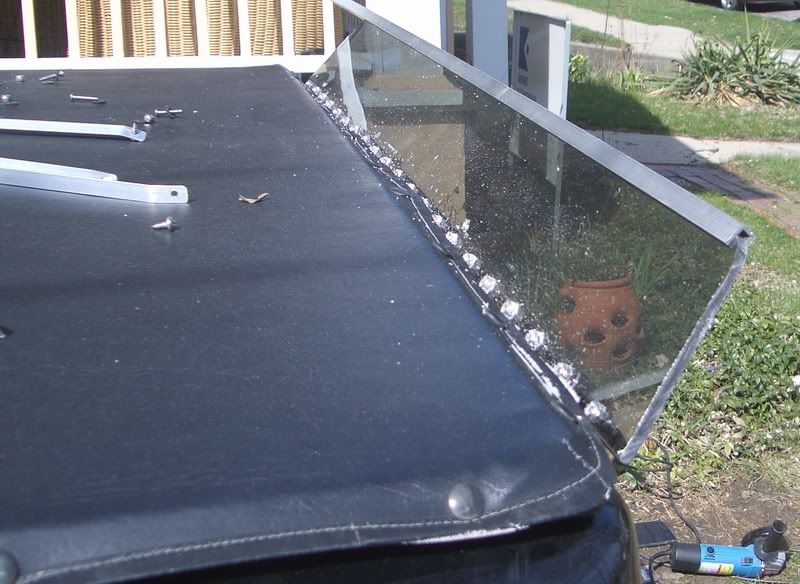

The "play" is when at highway speeds; just a slight fluttering, mild and not rapid at all. The angle is settled down to about 45 degrees.

The pressure center is now mostly at the aft spar, the taller spoiler had it placed second bay in (huge vortex). I have less downward pressure (and less drag) and is biased over the rear.


Steering is still good, not jumpy and does not feel like it's locked in 4WD like before with the tall spoiler.
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:22 PM
  Pelican Parts Technical Article Directory    Reply With Quote #5 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage

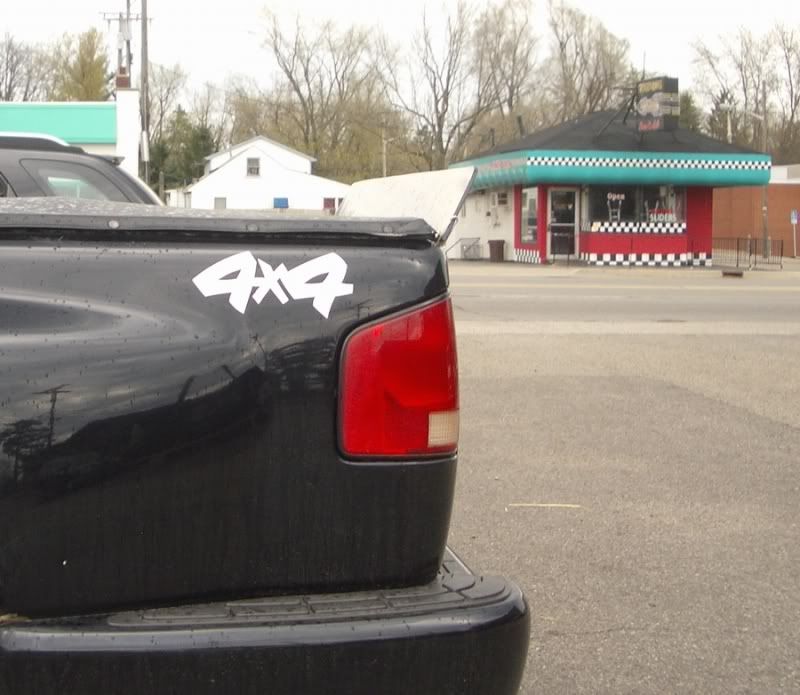

The bed spoilers on new trucks extend the horizontal plane, not doing much at all even when most beds are covered these days.

I think this works better because in snowy conditions we might see fewer pick up trucks ending up in the ditch.


The pins pull out so that the spoiler lays flat for loading, plastic sleeves with depth were glued in.


Angle of max. "play" I think goes on at speed.


NOTE:
I will post gas mileage in a few weeks when I'm driving more highway like I used to.
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 12:23 PM
  Pelican Parts Technical Article Directory    Reply With Quote #6 (permalink)

Now Available for Ordering:   101 Projects For Your BMW 3 Series 1982-2000  [more info]
Corkscrewing in

lendaddy's Avatar

Join Date: Jul 2001
Location: West Michigan
Posts: 19,008
Oh my

You're fearless George, on that a commend you.

__________________
cog in the broken machine
Old 04-30-2009, 01:06 PM
  Pelican Parts Technical Article Directory    Reply With Quote #7 (permalink)
Run smooth, run fast

Heel n Toe's Avatar

Join Date: Aug 2008
Location: South Carolina
Posts: 10,057
More photos, please... one taken from below with you lying on your back under the truck, and the other taken from the roof of your house.
__________________
- John
"We had a band powerful enough to turn goat piss into gasoline."
Old 04-30-2009, 01:21 PM
  Pelican Parts Technical Article Directory    Reply With Quote #8 (permalink)
jyl jyl is offline
Registered User

jyl's Avatar

Join Date: Jan 2002
Location: Nor California & Pac NW
Posts: 19,209
Garage
I like the spoiler. What is next? I'm thinking belly pan and side skirts?
__________________
1989 3.2 Carrera coupe
1988 Westy Vanagon, Zetec conversion
Really want to find a clean E28 . . .
Old 04-30-2009, 01:48 PM
  Pelican Parts Technical Article Directory    Reply With Quote #9 (permalink)
Corkscrewing in

lendaddy's Avatar

Join Date: Jul 2001
Location: West Michigan
Posts: 19,008
Obviously a rear diffuser....
__________________
cog in the broken machine
Old 04-30-2009, 01:58 PM
  Pelican Parts Technical Article Directory    Reply With Quote #10 (permalink)
jyl jyl is offline
Registered User

jyl's Avatar

Join Date: Jan 2002
Location: Nor California & Pac NW
Posts: 19,209
Garage
Then a month of litigation with himself.
__________________
1989 3.2 Carrera coupe
1988 Westy Vanagon, Zetec conversion
Really want to find a clean E28 . . .
Old 04-30-2009, 02:00 PM
  Pelican Parts Technical Article Directory    Reply With Quote #11 (permalink)
I'm with Bill

Rick V's Avatar

Join Date: Jun 2005
Location: Scottsville Va
Posts: 24,199
Hey You got a Hemi in that thing?
__________________
Electrical problems on a pick-up will do that to a guy- 1990C4S
Old 04-30-2009, 02:56 PM
  Pelican Parts Technical Article Directory    Reply With Quote #12 (permalink)
Registered User

Dottore's Avatar

Join Date: Jun 2005
Location: Hamburg & Vancouver
Posts: 7,698
Drive that baby strait to the Patent Office.
__________________
_____________________
These are my principles. If you don't like them, I have others.—Groucho Marx
Old 04-30-2009, 03:02 PM
  Pelican Parts Technical Article Directory    Reply With Quote #13 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage
A question someone asked over at carnuts.us:
How did you decide what angle to use?

I Googled as many racing truck images as I could, spent hours researching it, very few articles on it.

I guessed, and copied what I thought I saw.

Ended up 52 degrees for the big rear spoiler even though it looks almost 90.

I have not taken my adjustable triangle to the short one, but decided early on to let it ease back to near 45 degrees; as that's what I saw many car deck lid fiberglass spoilers doing going all back to the cars in the late 1960's.

Some of the dirt track cars with massive roof spoilers have it set at 45 degrees with a tiny 3/8" vertical Gurney flap on to pf it.

Later on I can always bend an aluminum "L" to 45 and set it on my acrylic 45 for 90 lip.
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 03:42 PM
  Pelican Parts Technical Article Directory    Reply With Quote #14 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage
Quote:
Originally Posted by lendaddy View Post
Oh my

You're fearless George, on that a commend you.
You want to see fearless? There is this guy I know (recently - has a 356 Speedster now) who when he was 15 years old purchased a Corvair, cut the roof off, and cut three feet out of the wheelbase.

Thread with picture here:
http://carnuts.us/forum/viewtopic.php?f=6&t=2085&p=29038&hilit=corvair#p29038
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 04-30-2009, 03:47 PM
  Pelican Parts Technical Article Directory    Reply With Quote #15 (permalink)
Registered User

Brillo's Avatar

Join Date: Jan 2002
Location: San Gabriel Valley, California
Posts: 1,312
Garage
Quote:
Originally Posted by kach22i View Post
You want to see fearless? There is this guy I know (recently - has a 356 Speedster now) who when he was 15 years old purchased a Corvair, cut the roof off, and cut three feet out of the wheelbase.

Thread with picture here:
http://carnuts.us/forum/viewtopic.php?f=6&t=2085&p=29038&hilit=corvair#p29038
Isn't he the same Barry that has posted on Pelican documenting his car trailer build and now his boat trailer?
Any interest in my boat trailer project?
__________________
Ray H.
1979 911SC Coupe
2000 986
Old 04-30-2009, 04:54 PM
  Pelican Parts Technical Article Directory    Reply With Quote #16 (permalink)
Registered User

kach22i's Avatar

Join Date: Mar 2004
Location: Michigan
Posts: 36,049
Garage
Quote:
Originally Posted by Brillo View Post
Isn't he the same Barry that has posted on Pelican documenting his car trailer build and now his boat trailer?
Any interest in my boat trailer project?
Yes, the same.
__________________
1977 911S Targa 2.7L (CIS) Silver/Black
1998 Chevy S-10 4x4 Pick-Up Truck, Razzle Dazzle Camo
1989 modified Scat II HP Hovercraft
George, Architect
Old 05-01-2009, 01:28 AM
  Pelican Parts Technical Article Directory    Reply With Quote #17 (permalink)
Registered User

ckissick's Avatar

Join Date: Jan 2003
Location: the beach
Posts: 3,670
Does anyone have a patent on that? If not, get one. Your device doesn't look bad or blingy at all.

Pickup trucks are just too light in the rear; I never liked the way the light rear felt. Of course, my rear-engine Tristar doesn't have that problem.
__________________
Charlie
1966 912 Polo Red
1950 VW
1983 VW Westfalia
1989 VW Syncro Tristar Doka
Old 05-01-2009, 06:18 AM
  Pelican Parts Technical Article Directory    Reply With Quote #18 (permalink)
Bollweevil

Join Date: Dec 2003
Location: Fulshear, Texanistan
Posts: 2,762
Re: the rusting piano hinge. Go to West Marine or other boating supply house and get stainless steel piano hinge.
__________________
Jack
74 911 Coupe
2.7L - S suspension
Old 05-01-2009, 06:24 AM
  Pelican Parts Technical Article Directory    Reply With Quote #19 (permalink)
DUK DUK is offline
Registered User

DUK's Avatar

Join Date: May 2005
Location: Gold Hill, NC
Posts: 1,873
65 degree is the rule. (nascar 2009)

BTW- anything under 40 degrees usually causes lift.
__________________
75 911 Indian Red- RUFWAN2B 2000 Boxster
2000 & 2007 Dobies
www.stahlwerks.com Cages and preparation for your Porsche
“People who never make mistakes must get tired of doing nothing”
Bill : The origin of the orgy of Porsche
