air compressor question- what size lines/fittings ?

As a follow up to my caster question I now need to know what the conventional wisdom is when it comes to plumbing the home shop for air. I have a IR 60 gallon two stage compressor. All of my air tools currently use the 1/4 quick connect size couplers and fittings. Would it make sense to change to the larger 3/8 ? Or does it not matter for the home shop ? The compressor came with massive quick connect fitting it must be 3/4 and 50 feet of rubber hose but it's much too big for air tools. The previous owner was feeding a large sand blast cabinet.
Now onto the air lines. Is 1/4 inch sufficient or should those be 3/8 or larger ? And finally if I'm going to plumb copper around the perimeter of the shop is 1/2 inch sufficient or go with 3/4 ? The air tools I currently have are:

1/4 , 3/8 + 1/2 inch air ratchets
1/2 inch impact wrench
detail and full size spray guns
DA sander

That's it for now but I could add a small blast cabinet in the future plus maybe some additional hand tools. Nothing really volume heavy except for the blast cabinet. So what do you guys use ?
__________________
1983 911SC Quartz grey/blk interior.
2002 Boxster S added 1/1/14. Arctic silver + black top/int.
1974 911S Targa- gone
1987 944S- gone
1975 914/6 GT clone- gone
Old 12-31-2010, 05:45 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #1 (permalink)
Registered User

greglepore's Avatar

Join Date: Mar 2003
Location: SE Pa USA
Posts: 2,232
3/8 hose. I/2 supply lines are fine. Don't be afraid of pvc in this application, although I'm sure folks will chime in that its deadly.

1/4 hose will leave your high volume tools-ie 1/2 impact-without torque.
__________________
Greg Lepore
85 Targa
05 Ducati 749s (wrecked, stupidly)
2000 K1200rs (gone, due to above)
Old 12-31-2010, 05:53 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #2 (permalink)
Registered User

billybek's Avatar

Join Date: Dec 2007
Location: Calgary
Posts: 3,515
Garage
I am a big fan of copper. Use a 95/5 or a bearing solder to join fittings.
1/2 would be sufficient for your application.
Do a top take off for the line drops and a drip leg and a drain valve under your female connectors.
If you are doing any painting you may want to consider filtration for oil and water.
__________________
Bill K.
"I started out with nothin and I still got most of it left...."
83 911 SC Guards Red
And a bunch of parts I haven't installed yet.
Old 12-31-2010, 06:08 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #3 (permalink)
Registered User

Join Date: Jun 2010
Location: Crestview Florida
Posts: 1,791
Garage
Quote:
Originally Posted by greglepore View Post
3/8 hose. I/2 supply lines are fine. Don't be afraid of pvc in this application, although I'm sure folks will chime in that its deadly.

1/4 hose will leave your high volume tools-ie 1/2 impact-without torque.
Ditto!!
Old 12-31-2010, 06:40 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #4 (permalink)
Registered User

greglepore's Avatar

Join Date: Mar 2003
Location: SE Pa USA
Posts: 2,232
Yeah, you'd need filtration for water for paint. I love inline oilers for tools, but only at line end so you don't oil the pipes, and you'll need separate hoses for "clean" air then for paint. You can put the separator or oiler on a male fitting and move it for outlet to outlet as needed.
__________________
Greg Lepore
85 Targa
05 Ducati 749s (wrecked, stupidly)
2000 K1200rs (gone, due to above)
Old 12-31-2010, 07:26 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #5 (permalink)
Registered User

HarryD's Avatar

Join Date: May 2002
Location: Portland, Oregon
Posts: 8,617
Quote:
Originally Posted by greglepore View Post
3/8 hose. I/2 supply lines are fine. Don't be afraid of pvc in this application, although I'm sure folks will chime in that its deadly.

1/4 hose will leave your high volume tools-ie 1/2 impact-without torque.
I would not install any main smaller than 1/2" and if there is any distance at all, I would go to 3/4". The incremental cost to install the larger lines is largely materials for these sizes as the labor (cost or effort) is about the same.

I would be one of those that will tell you PVC is deadly. I have witnessed the consequences of PVC failures in compressed air lines (100-125 psi) first hand and the thought of SHARP shards of PVC flying through the air at a person is not pretty.

There are other plastic lines that are rated for Compressed Gas services but I personally do not like them since they are very difficult to install, repair or add to properly.
__________________
Harry
1970 VW Sunroof Bus - "The Magic Bus"
1973.5 911T Targa - "Smokey"
2008 Ford Fusion
2009 MB C300
Old 12-31-2010, 09:05 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #6 (permalink)

Now available:  101 Projects for Your Porsche Boxster!
Registered User

rfuerst911sc's Avatar

Join Date: Dec 2002
Location: Marietta,Georgia
Posts: 4,364
My garage is aprox. 23 x 24 with the compressor going in the front left corner. So the copper run will be about 47 feet at its longest run. I'm basically going to make a " U " out of copper with 2-3 drops per side. I will face my quick connect couplers up and will add a drain valve at both ends of the lines. I think 1/2 inch copper is sufficient for this length of run ?
__________________
1983 911SC Quartz grey/blk interior.
2002 Boxster S added 1/1/14. Arctic silver + black top/int.
1974 911S Targa- gone
1987 944S- gone
1975 914/6 GT clone- gone
Old 12-31-2010, 09:14 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #7 (permalink)
Registered User

Join Date: Sep 2009
Location: North of You
Posts: 3,173
Quote:
Originally Posted by rfuerst911sc View Post
I think 1/2 inch copper is sufficient for this length of run ?
Yes, it is. 3/4" is overkill.

Seamless hydraulic tubing is cheap and easy to install if you can borrow some tools. Just flare the ends and you are done.
Old 12-31-2010, 09:26 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #8 (permalink)
abit off center

cgarr's Avatar

Join Date: Feb 2002
Location: At the Airport Kentwood, MI
Posts: 6,587
Garage
Send a message via Yahoo to cgarr

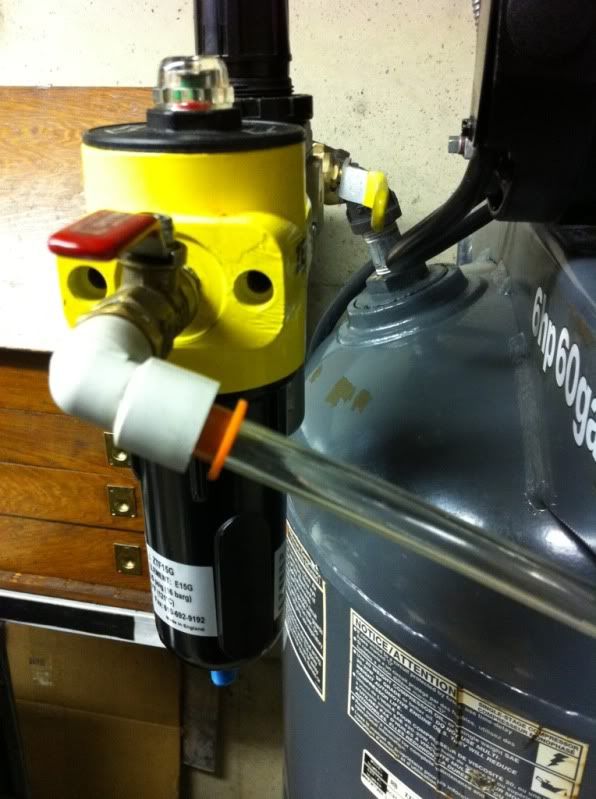

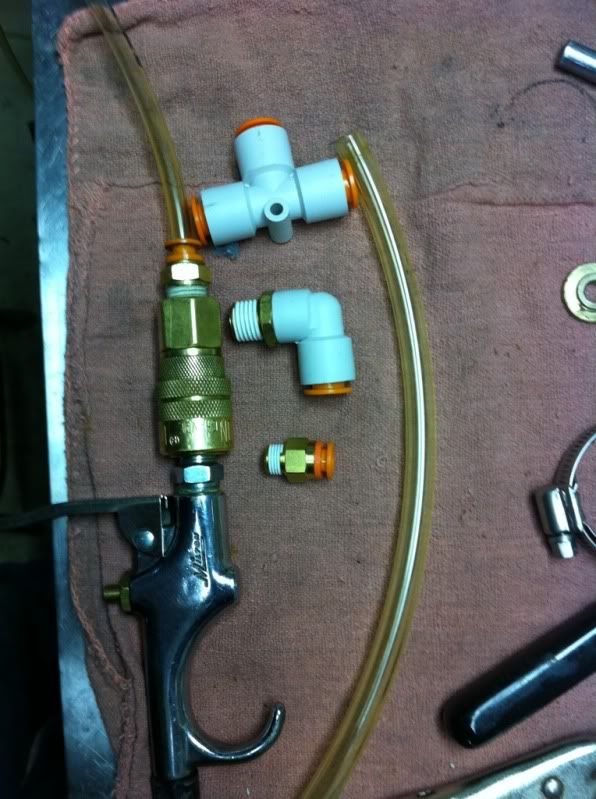

I like the SMC push in connections. You can get them in just about any size and the line you can get in any color. I have this line run all over from my basement to the garage.


__________________
______________________
Craig
G2Performance
Twinplug, head work, case savers, rockers arms, etc.
Old 12-31-2010, 09:51 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #9 (permalink)
Registered User

barryr's Avatar

Join Date: May 2009
Location: Regina SK. Canada
Posts: 110
Not to hijack the thread but what would be the recommended minimum rating of a compressor to supply the lines? 5 CF at 90 PSI? or ?
Barry
Old 12-31-2010, 09:59 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #10 (permalink)
Registered User

MBAtarga's Avatar

Join Date: Jul 2001
Location: Lawrenceville GA 30045
Posts: 2,499
Please - no PVC

19880520 The Use of Polyvinyl Chloride Pipe in Above Ground Installations

02/28/1991 - Use of thermoplastic pipe in above ground locations
__________________
Mark

83 SC Targa
Old 12-31-2010, 10:25 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #11 (permalink)
what? me worry?

TimT's Avatar

Join Date: Mar 2002
Location: Wantagh, NY
Posts: 6,343
SprayGunWorld.com - Professional HVLP Spray Guns

Get hi-flow quick disconnects, scroll down a bit you you will see them..

I got mine locally

HVLP Spray Gun Hoses
__________________
who are those guys? <<< ( Butch Cassidy and the Sundance Kid)
Rent a GT3RS from us!! Call or e-mail.
Transportation and Track support
Rudtners Racing

'69 911 GT-5
'75 914 GT-3
Authorised Haltech seller and installer
Authorised Unichip installer
BBS wheels
Fikse wheels
Redline motors oils
Swepco
1500 hp chassis dyno
Old 12-31-2010, 11:34 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #12 (permalink)

Now Available for Ordering:   101 Projects For Your BMW 3 Series 1982-2000  [more info]
abit off center

cgarr's Avatar

Join Date: Feb 2002
Location: At the Airport Kentwood, MI
Posts: 6,587
Garage
Send a message via Yahoo to cgarr

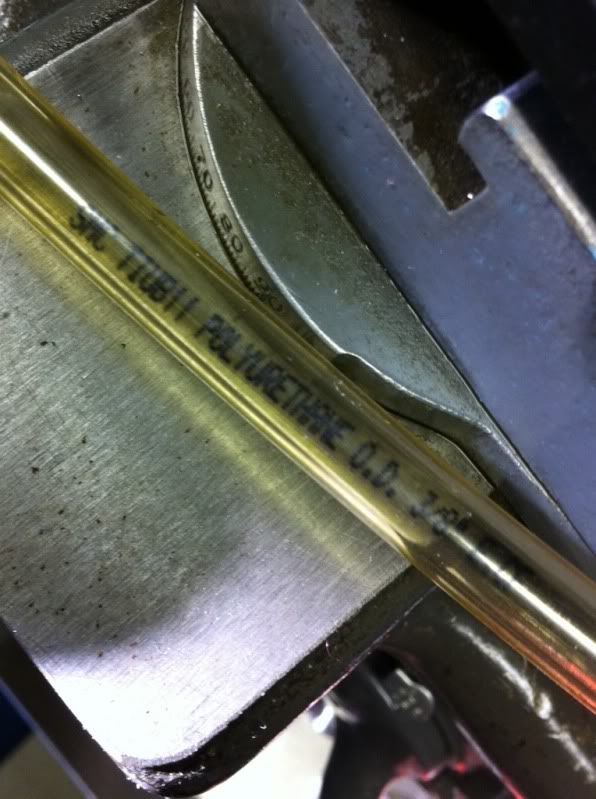

Indeed! if you go with a tubing make sure its either Polyurethane or Nylon Tubing!
__________________
______________________
Craig
G2Performance
Twinplug, head work, case savers, rockers arms, etc.
Old 12-31-2010, 12:04 PM
  Recommend this thread for the PelicanWiki    Reply With Quote #13 (permalink)
Vinyl Pimp

Joe Bob's Avatar

Join Date: Jul 1999
Location: Western Tri-states
Posts: 30,741
Include an inline water knock out pot. I like quick disconnects, get more than a few and keep them handy as you always need an extra one. I prefer the one sold at Sears.

There MANY different makes and when you buy a new tool, you'll need a compatible male end. Nothing pisses ya off more than a QD that don't fit.

Nice to be able to reach into a bin and pull one out. Use Teflon tape on the threads.
__________________
**********
Support your Pelican only Custom Graphic guy
73/83/93 RS Cab, 3.6
www.nbdgraphics.com ** also on FaceBook, there are NO BAD DAYS!
WORLDWIDE SHIPPING AVAILABLE!!!!!
Old 12-31-2010, 12:09 PM
  Recommend this thread for the PelicanWiki    Reply With Quote #14 (permalink)
Registered User

Green 912's Avatar

Join Date: Mar 2001
Location: Falls church Va
Posts: 725
[QUOTE=cgarr;5756400]I like the SMC push in connections. You can get them in just about any size and the line you can get in any color. I have this line run all over from my basement to the garage.


[/QUOT/]
How do you get enough air flow during a draw to power tools? Looks like real small I.D. tubing. Looks like vinyl tubing to boot.
Old 01-01-2011, 06:02 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #15 (permalink)
abit off center

cgarr's Avatar

Join Date: Feb 2002
Location: At the Airport Kentwood, MI
Posts: 6,587
Garage
Send a message via Yahoo to cgarr
Quote:
Originally Posted by Green 912 View Post
How do you get enough air flow during a draw to power tools? Looks like real small I.D. tubing. Looks like vinyl tubing to boot.
The main feed tubing is 3/8 OD and seems to flow more than I use. I have an old 30 gal tank stuffed up in the garage and that feeds my needs closer if I need an impact wrench otherwise all the other tools I have don't require a great flow of air.

The tubing is SMC choice for this type of operation. Its what we have been using in our plant for better than 15 years without any problems.

__________________
______________________
Craig
G2Performance
Twinplug, head work, case savers, rockers arms, etc.
Old 01-01-2011, 07:02 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #16 (permalink)
Registered User

HarryD's Avatar

Join Date: May 2002
Location: Portland, Oregon
Posts: 8,617
Flexible tubing is ok since it does not shatter in failure like rigid PVC pipe.
__________________
Harry
1970 VW Sunroof Bus - "The Magic Bus"
1973.5 911T Targa - "Smokey"
2008 Ford Fusion
2009 MB C300
Old 01-01-2011, 09:27 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #17 (permalink)
Registered User

dad911's Avatar

Join Date: Jul 2001
Location: NJ
Posts: 3,675
Below diagram shows the correct way to pitch pipe, drains, risers, etc.

http://www.tptools.com/StaticText/airline-piping-diagram.pdf

small line may flow enough, but will have pressure fluctuations when demand changes.

One more for NOT using PVC: http://www.lascofittings.com/supportcenter/CompressedAir.asp

Last edited by dad911; 01-01-2011 at 10:00 AM..
Old 01-01-2011, 09:52 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #18 (permalink)
i want one of those...

Rufblackbird's Avatar

Join Date: Jan 2000
Location: formerly a grass shack in Hawaii, now Glendale, AZ
Posts: 3,010
Quote:
Originally Posted by cgarr View Post
I like the SMC push in connections. You can get them in just about any size and the line you can get in any color. I have this line run all over from my basement to the garage.
quite intriguing. gonna have to look into this in the next couple of months after we move...

http://www.smcusa.com/sections/products/prodoverview.asp
__________________
Jeff
'72 911 T Targa widebody VTK #111385
RIP Early_S_Man...you will be sorely missed
Old 01-01-2011, 09:55 AM
  Recommend this thread for the PelicanWiki    Reply With Quote #19 (permalink)
Registered User

Join Date: May 2002
Location: St Louis
Posts: 3,479
I read that 50' of 3/4 black pipe before the water separator will cool the air enough but when I use my cheap sandblaster it still turns into a water nozzle.
__________________
Rick
88 Cab
