Backdated Heat Tech Article

I've waded through dozens of backdated heat threads, but still haven't found one that explains it all for an 83SC. Lots of great info, no doubt, but I'll be using this thread to sort out my own backdate and hopefully it can evolve into something useful like the other threads. I'll be using pics from my own car, and a few from other threads (thanks Pelicans!)

So as I understand it, backdating the heat in an 83SC involves removing the blower motor and ducting. These parts:



I won't go into specific of removal unless there is something unique. Loosening hose clamps and nuts are self-explanatory.

Here's how the left side looks after removing the large ribbed duct between the blower and left heat duct:



Next up I removed the short hose from the metal Y of the blower, then removed it where it attaches to the rear engine tin, here:



Then I removed the longer hose from the right side of the blower's Y. This hose is one long piece that goes from the blower Y all the way to the heat exhanger below the engine. To remove the other end of the hose from the heat exchanger I first had to remove my A/C compressor and the bracket that mounts it to the engine. You can see the hose here, how it routes under the bracket and down through the engine tin (hidden by the engine mount chassis attachment in this pic):




Below is my engine with the following items removed:
-blower motor (metal "Y" duct came off as part of the blower)
-the large, ribbed plastic duct that goes between the metal Y of the blower and the left heat duct (the part that attaches to the fiberglass fan shroud to the left of the fan)
- the left flex hose coming off the left metal Y
- the longer, right flex hose coming of the right Y and routing directly through the right tin to the heat exchanger underneath the car.

The two highlighted parts are:
-the left heat duct (smaller part)
-the rear engine tin (the larger part)
Old 11-26-2016, 06:10 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #1 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
continued from previous post...



Here's what the right side of my engine looks like after removing the long hose. The highlighted part is the block off plate that will later be replaced by an earlier part that allows a hose to be routed back under the A/C bracket, through the engine tin and down to the heat exchanger.




And here's a closeup shot of the tin piece on the right side of the engine (this is usually hidden under by the A/C bracket.)
Old 11-26-2016, 06:15 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #2 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
continued...

Old 11-26-2016, 06:16 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #3 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
So here's my first question.

Left side of the engine. I've seen a few different ways of routing the left heat duct from the shroud to the heat exchanger. First option: keep my SC tin with the metal tube and use two pieces of hose to route to the heat exchanger. Will this routing work with SSI's?

I think that's what's going on here:



Other option is to source rear tin, and the two left pieces for a one-piece, and perhaps tidier routing of the left hose.

Here's my tin. Looks like I could cut a hole in the small piece B and keep the long piece C. Is this possible? I would still need to source an early rear tin to get rid of the metal tube, A, in mine.



Here's an example of that setup:

Old 11-26-2016, 06:41 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #4 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
I meant to add this pic. The tins I would need to do the more "proper" routing are lettered E F and G. Looks like F is the way to go, rather than cutting a hole in my B tin. Question is, will my C work with an F?

Old 11-26-2016, 06:46 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #5 (permalink)
Registered User

Join Date: Feb 2002
Location: Van Nuys
Posts: 9,739
Yes, your C trim will work with F
__________________
1970 914-6 street"evil cockaroach"
1970 911 Spyder
1970 911S Conda
1973 911S Glacier Blue
Old 11-26-2016, 06:53 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #6 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
Quote:
Originally Posted by TRE Cup View Post
Yes, your C trim will work with F
Thank you Sir!
Old 11-26-2016, 11:40 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #7 (permalink)
83 911 Production Cab #10

JJ 911SC's Avatar

Join Date: Jun 2009
Location: Ottawa, Ontario, Canada
Posts: 10,556
Garage
Quote:
Originally Posted by Jameel View Post
... Will this routing work with SSI's?

Yes it will, here is a picture of mine...


__________________
Who Will Live... Will See

83 911 Production Cab #10, Slightly Modified: Unslanted, 3.2, PMO EFI, TECgt, CE 911 CAM Sync / Pulley / Wires, SSI, Dansk Sport 2/2, 17" Euromeister, CKO GT3 Seats, Going SOK Super Charger
Old 11-26-2016, 03:11 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #8 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
Quote:
Originally Posted by JJ 911SC View Post
Yes it will, here is a picture of mine...


Great. But will SSI's work with my SC tin? The one where the metal tube is at the corner?
Old 11-26-2016, 03:42 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #9 (permalink)
83 911 Production Cab #10

JJ 911SC's Avatar

Join Date: Jun 2009
Location: Ottawa, Ontario, Canada
Posts: 10,556
Garage
In post #3?
__________________
Who Will Live... Will See

83 911 Production Cab #10, Slightly Modified: Unslanted, 3.2, PMO EFI, TECgt, CE 911 CAM Sync / Pulley / Wires, SSI, Dansk Sport 2/2, 17" Euromeister, CKO GT3 Seats, Going SOK Super Charger
Old 11-26-2016, 03:46 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #10 (permalink)
Registered User

Join Date: Nov 2016
Location: Alexandria VA
Posts: 32
Garage

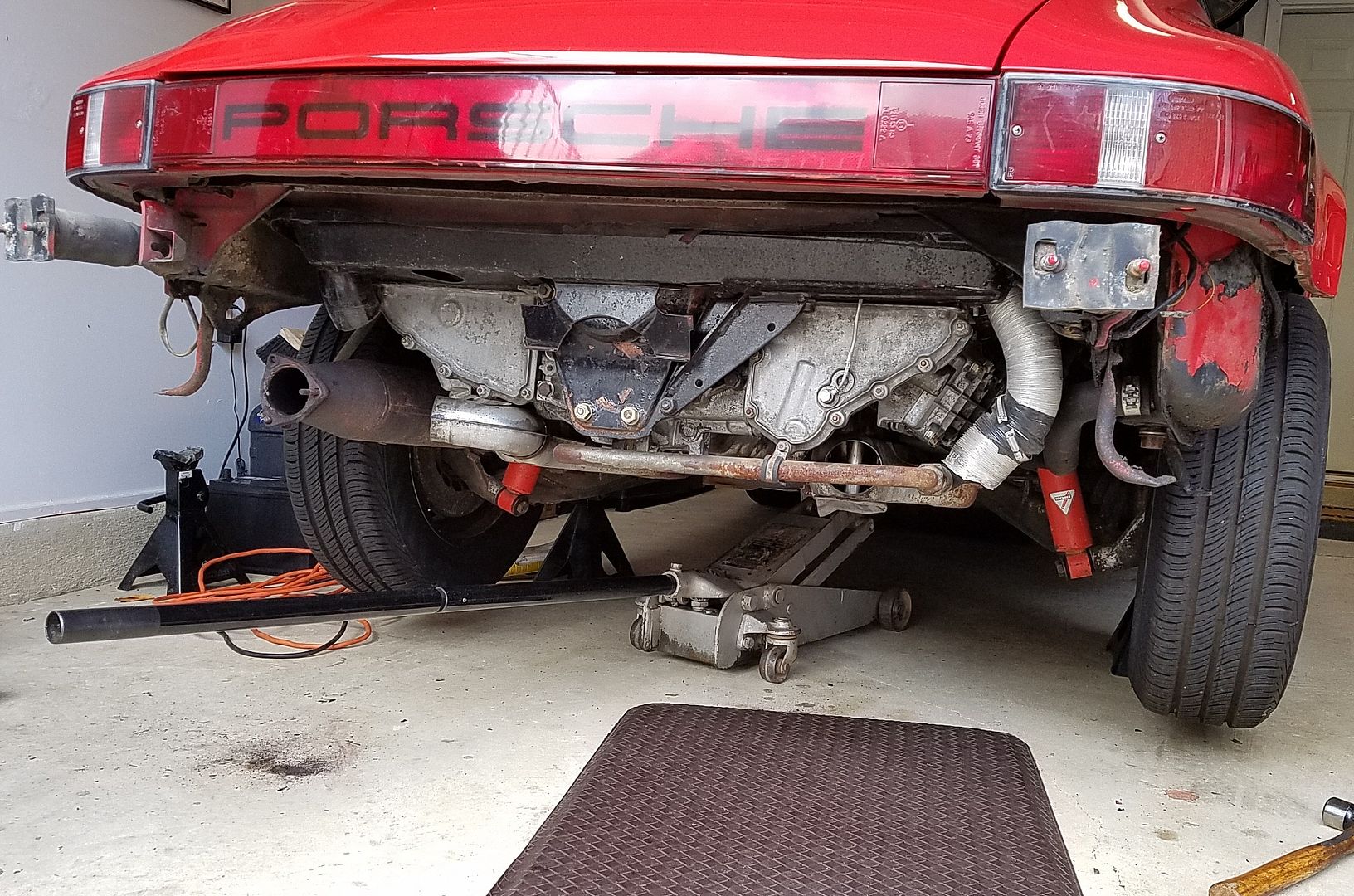

I just installed SSI heat exchangers on my 82 engine. I'm keeping the heater blower so I used a flexible hose from the bottom rear tin tube to the left SSI heater tube inlet. It's a tight fit.
Old 11-26-2016, 04:02 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #11 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
Quote:
Originally Posted by JJ 911SC View Post
In post #3?
No, part A on my tin. Just wondering if that corner metal tube is too far back to mate up with SSIs.
Old 11-26-2016, 06:00 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #12 (permalink)

Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
Quote:
Originally Posted by jgerock View Post
I just installed SSI heat exchangers on my 82 engine. I'm keeping the heater blower so I used a flexible hose from the bottom rear tin tube to the left SSI heater tube inlet. It's a tight fit.
Aha, that's helpful. Got a pic by chance?
Old 11-26-2016, 06:03 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #13 (permalink)
Registered User

Join Date: Nov 2016
Location: Alexandria VA
Posts: 32
Garage
Quote:
Originally Posted by Jameel View Post
Aha, that's helpful. Got a pic by chance?
For some strange reason, lately I haven't been able to upload pics to Photobucket from my Android so I cannot share a few from yesterday.
Here is what I started with.
Old 11-27-2016, 07:47 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #14 (permalink)
Banned for Life

RSBob's Avatar

Join Date: Jan 2003
Location: "Apple Maggot Quarantine Area', WA.
Posts: 5,056
Garage
Don't know if there is much of a difference between an 83 and 82 tin, but here is the routing of my backdate on my 82 using the existing tin.


__________________
Rick S, '71 914 3.0, '82 911SC EFI, R Gruppe #309
Old 11-27-2016, 08:25 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #15 (permalink)
Registered User

SoCal911SC's Avatar

Join Date: Feb 2014
Location: Redlands, CA aka "the 909"
Posts: 150
Garage
Here's my set-up. Used the existing port on the left side with a reducer, and JB Welded an elbow on the right side.


__________________
2014 Panamera Turbo Executive
1982 911SC Targa - Guards Red
1983 DeLorean (Sold)
2001 996TT - Lapis Blue (Sold)
1995 993 C2 - Grand Prix White (RIP)

Last edited by SoCal911SC; 11-27-2016 at 11:21 AM..
Old 11-27-2016, 10:27 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #16 (permalink)
Registered User

CBRacerX's Avatar

Join Date: May 2002
Location: New Hope, PA - USA
Posts: 2,346
Garage
Yes SSI will work with the stock SC tin on both ends. I used flexible orange high heat tubing on the underside. You can just see a little bit of it peeking out.
__________________
Chris

https://dergarage.com

'80 SC Weissach, '01 986S, '99 C2 Cab, '97 TJ, '01 Disco SE7, '06 KTM SM950

Last edited by CBRacerX; 11-27-2016 at 10:51 AM..
Old 11-27-2016, 10:46 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #17 (permalink)
Registered User

CBRacerX's Avatar

Join Date: May 2002
Location: New Hope, PA - USA
Posts: 2,346
Garage
And the right
__________________
Chris

https://dergarage.com

'80 SC Weissach, '01 986S, '99 C2 Cab, '97 TJ, '01 Disco SE7, '06 KTM SM950
Old 11-27-2016, 10:47 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #18 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
I can see it Chris. Nice pics and thanks for adding.
Old 11-29-2016, 04:48 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #19 (permalink)
Registered User

Jameel's Avatar

Join Date: Oct 2015
Location: Iowa
Posts: 570
So I found another picture that shows clearly how the left hose routes through SC tin (the metal tube at the back left corner) down to SSI's.

It's also pretty clear that the short piece of tin with the hole (tin F) would allow a straighter path from the left duct.



Old 11-29-2016, 05:01 AM
