What does this do?

I have a 2.0L 76 Californian car. I am just trying to get to know the engine and have a few questions regarding the fuel injection and hoses.

Is there a good diagram showing the hose connections for a 2,0L car?

It looks like the PO has mounted a plate over one of the hose connections on the air filter see pic under what was this connected to?

[IMG][/IMG]

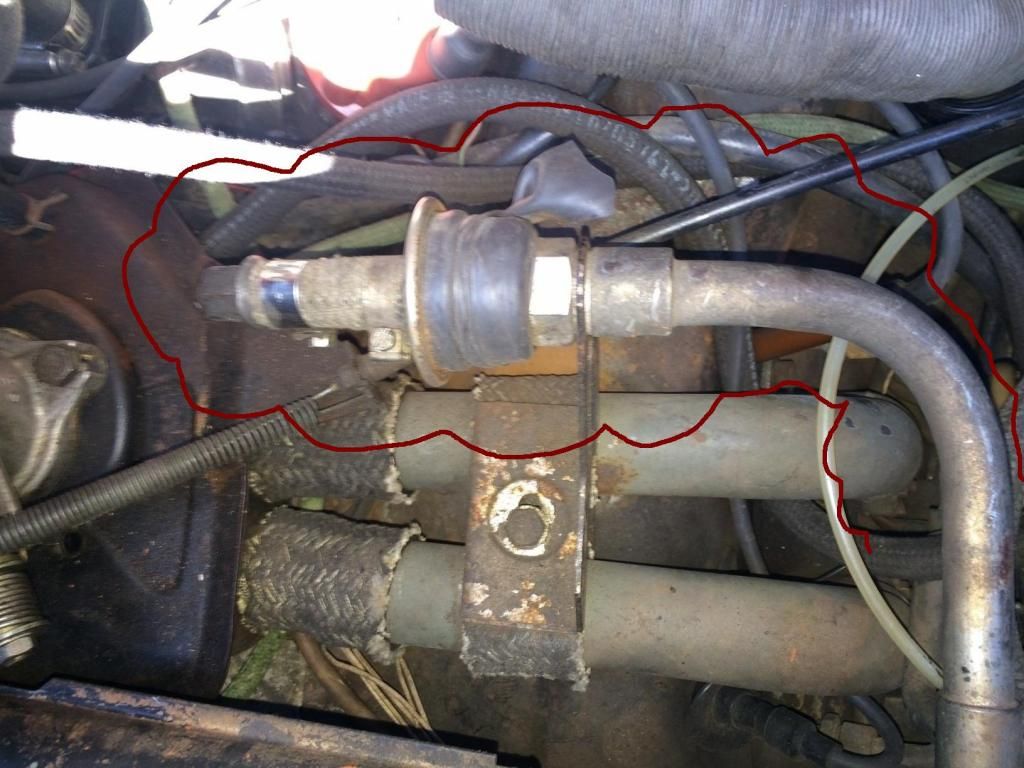

There is also this any ideas what it is? It looks like its been disconnected and the hose plugged.

[IMG][/IMG]



Thanks
