So, steady progress just crossing off those to-do list items. Monday was a great Day #1 of my vacation week, getting a lot of the stuff done that I can - other items needed me to have the anodised water parts back before I can sensibly tackle them. Thankfully a phonecall into the plating shop and I was on my way over to collect them on Tuesday.

Off the top of my head, Mondays work:

• Spark plug indexing spacers are now all done.
• Valve covers now on with the Wrightwood gaskets and some very smart (IMO) domed nyloc M8 nuts. I know it's not factory original but seeing road grime on the exposed threads irritates me somewhat.
• Coil-on-Plugs are now installed - unbelievably solid on the posts that I've made that mount it to the valve covers. Very pleased with that.
• The new radiator support arms and water pump support assy is also now mounted.
• The water expansion tank is now permanently installed; the F/F isolating rubber mount I was waiting for arrived as hoped.
• Turbo oil drain tank is now back on
• New sleeving on the scavenge hose that pulls the oil from the tank; just a smaller diameter, looks neater.

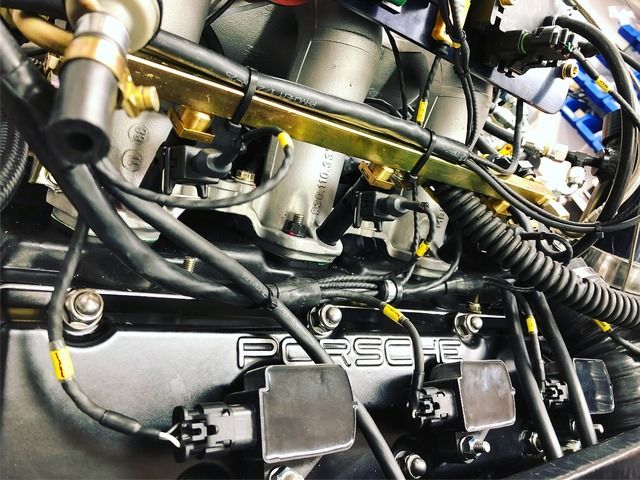

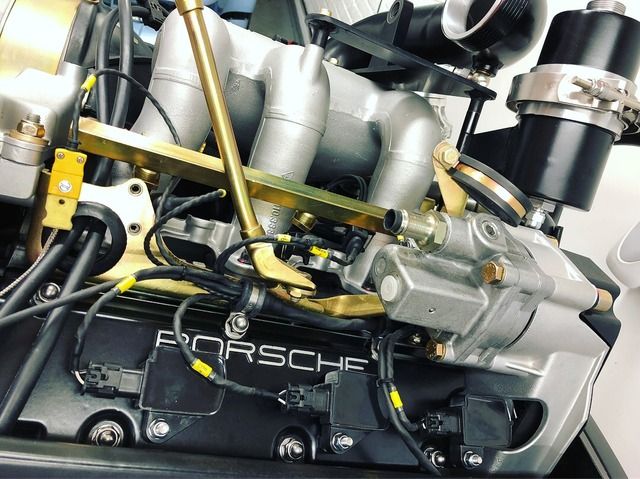

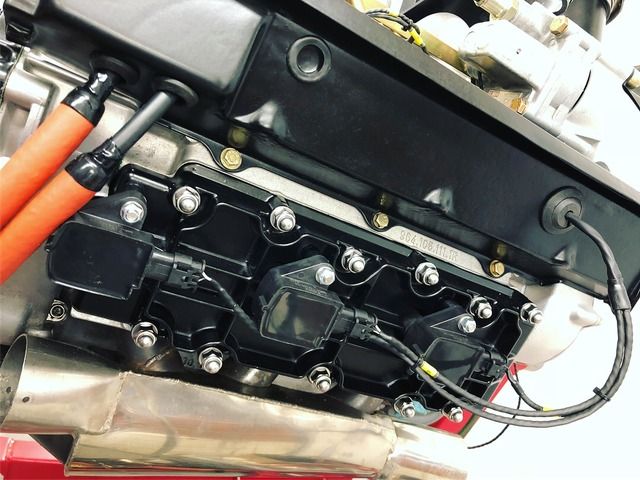

Valve covers on, radiator pump supports in place, CoP's installed:

http://img.photobucket.com/albums/v2...d/IMG_2447.jpg

http://img.photobucket.com/albums/v2...d/IMG_2449.jpg

http://img.photobucket.com/albums/v2...d/IMG_2448.jpg

http://img.photobucket.com/albums/v2...d/IMG_2450.jpg

Wednesday day was just a frustrating day in the workshop. As mentioned, I got the anodised parts back, all's well with the quality...

http://img.photobucket.com/albums/v2...d/IMG_2463.jpg

But then it was time to re-assemble everything and it should be "job-done" right? Nope. The engine goblins have been playing, and what I took a lot of time to make sure fitted before stripping it down, now doesn't re-assemble correctly. I've been struggling with clearance of water cooling fittings on the turbo versus the turbine shroud hex bolt fasteners, versus the -10 oil drain fitting; I can absolutely see why hard lines are used for this rather than hosing.

After much scratching of head, and switching around of the -8AN straight/135º connections, I've arrived at the answer.....I need to make a 25-30mm stand-off for one of the banjo's.

The rear banjo is fine - which is good, because space behind the turbo is really tight to the turbo mounting flange. This hose now has a straight fitting to drop it straight down, missing the oil drain line.

The oil feed line can (I think) stay as it is, albeit it's an absolute sod to install the 90º -4 fitting onto.

The oil drain line now needs to be re-made. It's quite a lot too short now that the CHRA has been rotated. I may play with this again, but I am debating the merits of keeping the CHRA with a 20º upward angle. The Garrett whitepaper says that there are benefits to be had with natural syphoning of water through the housing, even without the engine running (and water not being pumped)...however, I'm sure this is intended for cars that are plumbing a turbo into an existing, large capacity and mechanically pumped water circuit. With my setup, I'm not sure that water could be drawn through a static electric water pump. I'm pretty sure that we can achieve the same outcome and keep the pump operating post-shutdown using ECU control.

Anyway, the parts that are re-assembled - to be fair, it's most of it - does look very nice in my opinion; I'd like to think it's more towards a factory look and not a thrown together "DIY" lash-up!

http://img.photobucket.com/albums/v2...d/IMG_2469.jpg

http://img.photobucket.com/albums/v2...d/IMG_2468.jpg

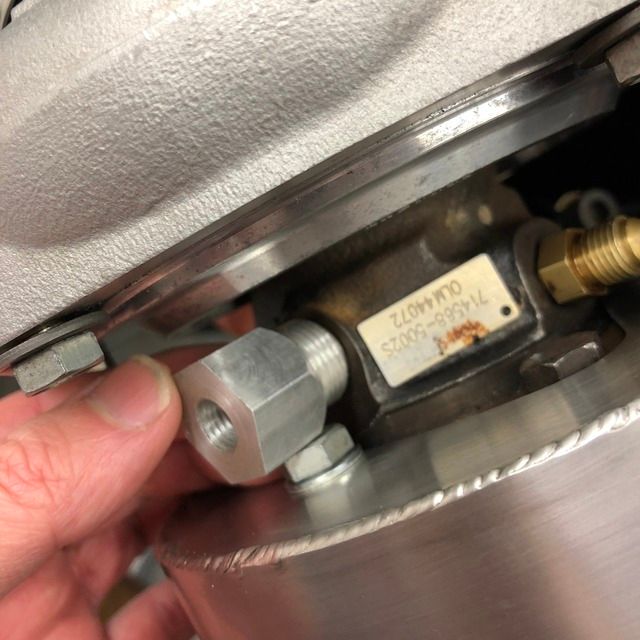

So, this spacer. Well, this is needed for the front water fitting. I'm going to have to make this myself, probably out of ally hex stock. M14x1.5 male thread at one end, and M14x1.5 female thread at the other. Approx 30mm long, with a waisted diameter at it's base, so that it can clear the wretched hex setscrew head....a bit like this one, which I happened to find in one of my parts trays (but is too short to rework/repurpose):

http://img.photobucket.com/albums/v2...d/IMG_2487.jpg

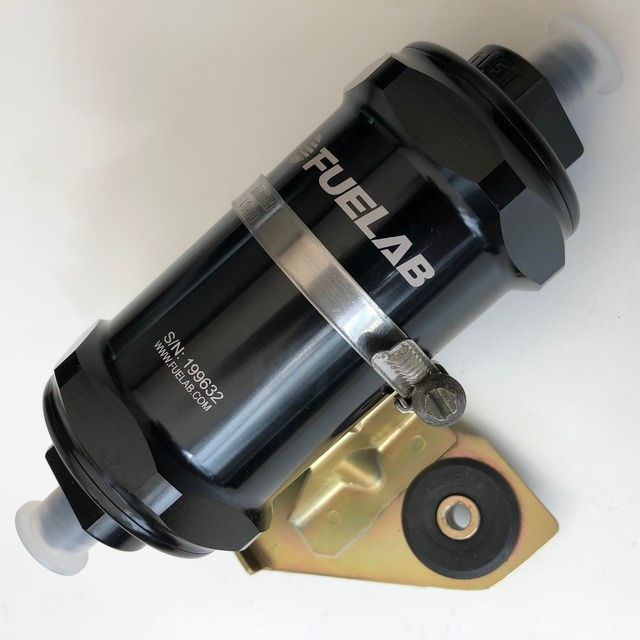

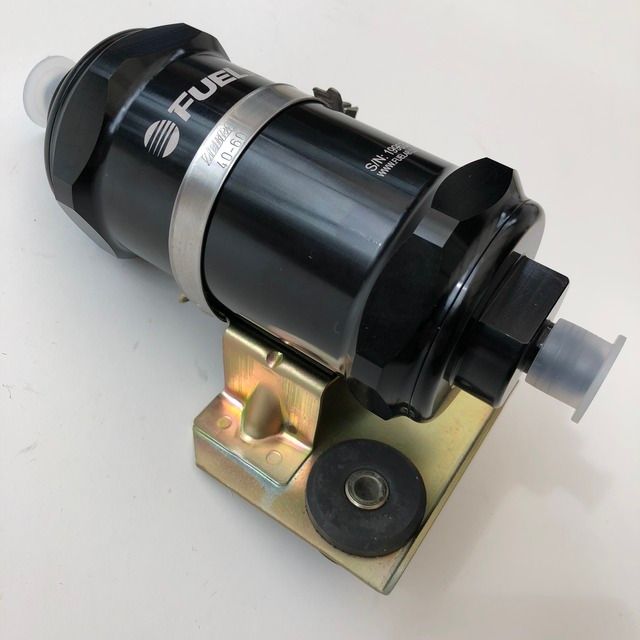

In other news, I've taken this opportunity to install a deluxe fuel filter while the engine is out. I need to switch some fittings on the fuel hoses from metric to JIC, not a major job. The Fuelab 10um filter unit should also arrived yesterday. I thought I'd need to fabricate a new bracket, as it looked a fair bit smaller in diameter to the stock unit, but actually it fits beautifully with a thin piece of rubber glued to the bracket to prevent slipping and scratching. An hour or so switching over the fittings, and it's now in place looking rather smart....

http://img.photobucket.com/albums/v2...d/IMG_2483.jpg

http://img.photobucket.com/albums/v2...d/IMG_2480.jpg

http://img.photobucket.com/albums/v2...d/IMG_2482.jpg

Really am just waiting for the tap and die to arrive, to make that spacer. Weather is too wet to roll the car outdoors and fit the ECU harness through the interior. I suppose it's a good sign that I'm now at a bit of a loss as to what job to do next! Silencer and flywheel/clutch are jobs for when the engine is off of the stand....

Cheers mate!


Haha, that'll be a while away yet!

Brief update this evening....brief because I got the √(sod all) done today! Too much NASA ISS EVA watching.....kind of like watching paint drying, but at the same time curiously addictive....

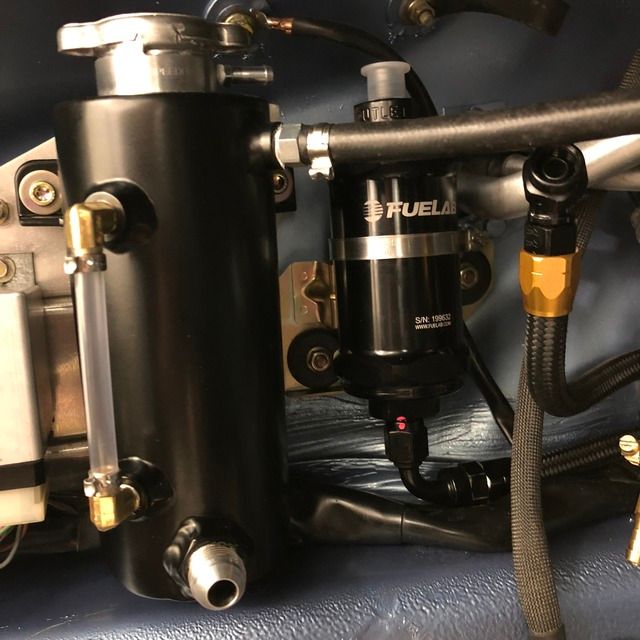

But...I did get the fuel regulator mounted, using the aforementioned factory bracket. The swapping of the metric fluid fittings for -6 was a little challenging, the "nut" recepticle of the old fittings can only be removed by cutting the hose; it has barbs on the ID. Getting the new recepticle for the -6 fitting also takes some elbow grease. Anyway's it's all done, and hooked up ready for the onwards fuel rail connection.

http://img.photobucket.com/albums/v2...d/IMG_2484.jpg

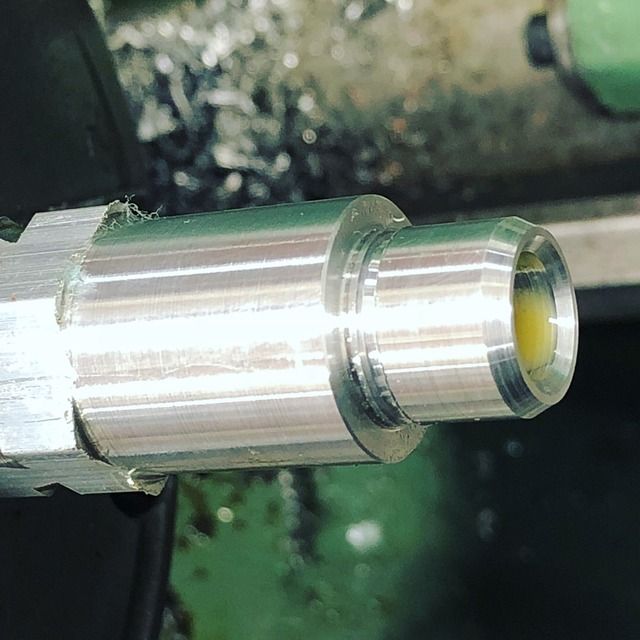

I also started making the new front water port spacer....

http://img.photobucket.com/albums/v2...d/IMG_2492.jpg

http://img.photobucket.com/albums/v2...d/IMG_2491.jpg

An undercut to allow the die to not leave a shallow thread at the end, and also keeping a shoulder for the copper washer to locate onto. Hoping the tap and die arrive in tomorrows post, then I can finish this little job, and get the water system completely finished.

An unexpected productive days work!

First order of the day was to wheel the car outside and start re-installing the ECU harness through the interior. Way-back-when, I tried to reuse the original rear bulkhead grommet that was part of the old CIS loom. Stupidly, I didn't soften it in hot water before trying to squeeze through the 2x MIL plugs which connect to the engine. Predictably it split the thin centre sealing section. It has a Porsche part number, but apparently nobody can source it as an individual item.

Trying to find something suitable for a 60mm hole is also not easy, so I ended up buying a very nice split grommet from Think Automotive a few weeks ago, with a perfect fit hole to seal against the harness. All I've been waiting for is a break in the weather to get it fitted. Which I got this morning. For an hour.

So, it's all now in, the surrounding area tidied up a little, removing lots of fragments of split/broken sound deadening and adhesive. I can't reinstall the rear quarter panels, carpet or seats just yet, as I need to ensure that enough harness sits engine-side (but not too much).

http://img.photobucket.com/albums/v2...d/IMG_2494.jpg

http://img.photobucket.com/albums/v2...d/IMG_2493.jpg

Elsewhere, the CHRA is now rotated back to it's original position, and tightened against the turbine side; I'm holding off tightening the compressor side until the tinware goes back on, so I can check alignment.

The oil drain hose to the catch tank is now refitted, and so is the 90º oil feed line.

Unfortunately there's no UK postal service on Good Friday, so still no tap and die to finish the spacer with....however...in giving it some thought overnight, I realised that I ought to skinny-down the centre section of the spacer so that it clears the CHRA/Turbine bolt, so another few minutes on the lathe...

http://img.photobucket.com/albums/v2...d/IMG_2497.jpg

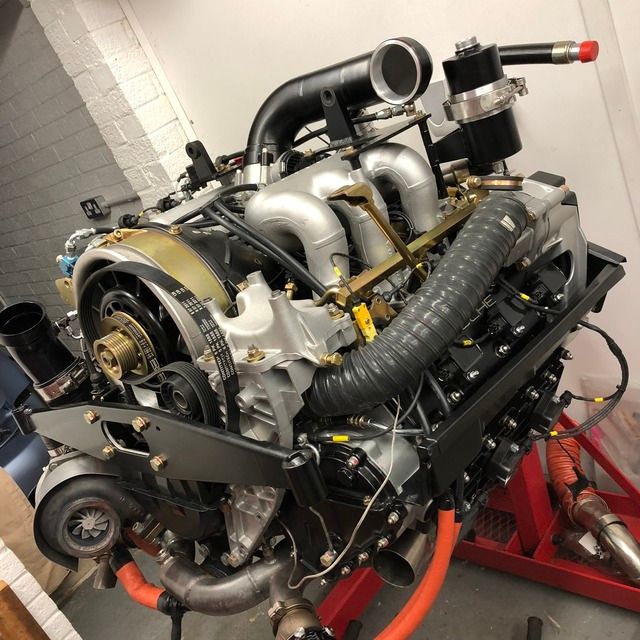

Finally, the RH air duct hose from the shroud is now back on; I'm sure that previously I simply pushed it in place, as getting a hose clip on there was troublesome. No idea why I didn't realise that by simply removing the AC pump platform, you can quite easily fit a clip on there properly.

http://img.photobucket.com/albums/v2...d/IMG_2500.jpg

Not sure of plans for this evening, I may get time to reinstall more heat shielding and the silencer mount, as well as the front tinware...we'll see.

Well, the plan soon became clear last night. In the process of refitting the front tinware, with the heatshielding and silencer hanger bracket, then realised that the turbo hanging bracket that mounts onto the crank pulley cover, into the crankcase, was not installed; not accidentally left loose, I'd obviously come across an issue a while ago, and either got distracted or consciously left it for another day.

The problem? The M10 thread in the crankcase has stripped. No idea how, it takes some doing to over-torque an M10 fixing, and I'm religious with torque wrenches...but it is what it is.

http://img.photobucket.com/albums/v2...d/IMG_2506.jpg

The disassembly to remedy the problem was a pain in the arse, only because the lowest 2 bolts holding the crank cover on can't be removed without getting the exhaust manifolds out of the way. Arggghhh!!!

http://img.photobucket.com/albums/v2...d/IMG_2504.jpg

Anyway, it didn't actually take as long as I'd feared, just brew a cuppa and crack on with it. The offending hole is now drilled out and tapped to accept a helicoil, however, the only M10 helicoils I have are only 13.5mm long. A quick-swipe-right on Amazon and I should get a pack of 20mm helicoils on Monday.

http://img.photobucket.com/albums/v2...d/IMG_2505.jpg

This mornings work was more positive; the M14 taps and die arrived (only for me to get the tailstock die holder out...and find an M14x1.5 die already in there! Doh. Of course, I was making ally blanking plugs a few months ago, but unusually, I hadn't stripped it after use and replaced it in my taps and dies drawer. That'll teach me).

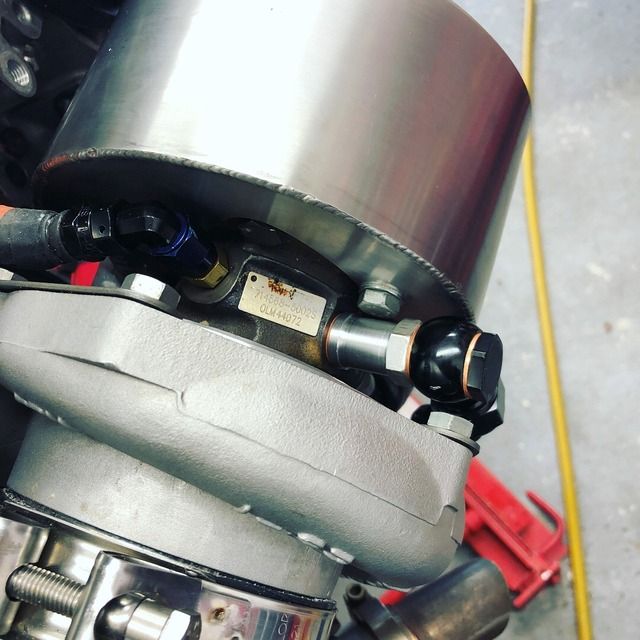

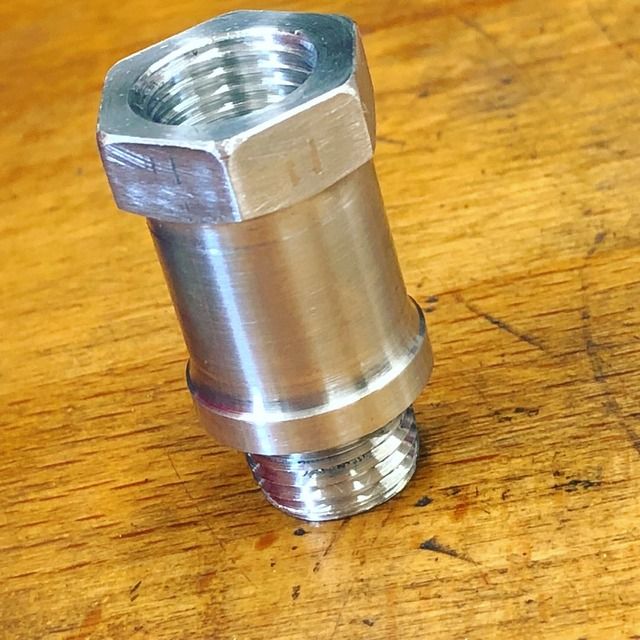

The spacer for the turbo coolant port is now finished; not the tidiest piece of work I've done, but functions fantastically, nice and strong, and clears everything it needs to.

http://img.photobucket.com/albums/v2...d/IMG_2510.jpg

http://img.photobucket.com/albums/v2...d/IMG_2511.jpg

I even had some luck with the hose running across to it; I thought I'd have to make a new hose about 50mm longer, but by reversing it and re-routing, it's spot-on, clearing the LH wastegate nicely.

http://img.photobucket.com/albums/v2...d/IMG_2513.jpg

And that's about all I can do on the engine itself until the helicoil pack arrives after the Easter break. I may have a go at making a new under-seat mounting plate for the Syvecs ECU. The old one has all the mounting holes for the MBE unit, so would look scruffy if reused. I'll also look to get the new plate powder coated, as I have a few weeks now until the (rescheduled) engine install date in a few weeks time. A few pals are going to come down and help, followed by the mandatory curry and beer in the evening ;)

A quick catch-up update;

The longer Helicoils arrived the other day, approx 20mm long. The M10 thread that needs repairing has a depth of 33mm.

[Now, whilst repairing one of my lightweight aluminium trolley jacks last weekend with Lucy (as you do...) I needed to drill out one of the M8 bolts in the piston housing, and then also repair it with a Helicoil. I thought it'd be a good opportunity to test whether stacking 2x coils into the tapped hole would work - no reason that I could think of why it shouldn't, unless the tang at the end of the top-most coil doesn't break off cleanly. It was absolutely successful, just a slight "catch" where the two coils butt up to each other.]

Repeating that process with a 20mm + 13mm standard Helicoil into the crankcase M10 hole was also 100% successful....

http://img.photobucket.com/albums/v2...d/IMG_2535.jpg

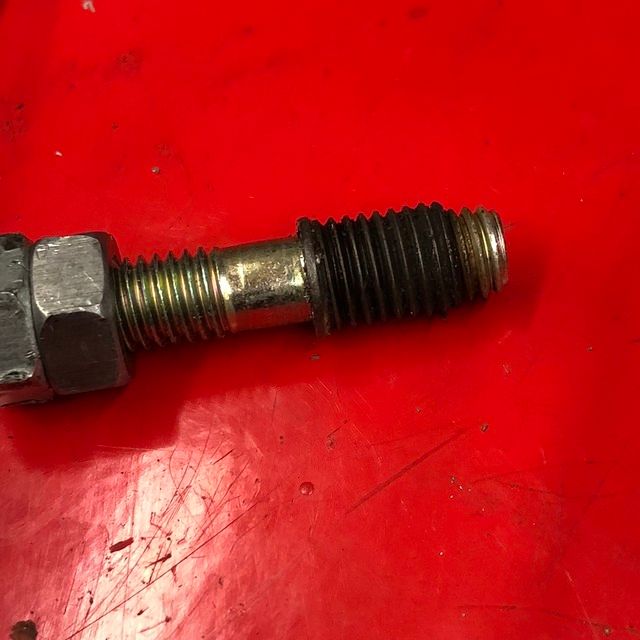

....however when re-fitting the exhaust headers, three nuts from finishing it, the stud on #5 stripped. I thought it was strange that when undoing the headers, the stud came out rather than the nut coming off. All of the studs were new and Loctite'd with red 263 threadlock, after we drilled out the snapped studs a few months ago. There was one stud that was a little problematic; in trying to clean the thread it kept snagging, locking the tap. I guess it removed just a little too much thread material and it's now ripped.

http://img.photobucket.com/albums/v2...d/IMG_2540.jpg

http://img.photobucket.com/albums/v2...d/IMG_2539.jpg

So, time to remove the headers AGAIN, and fix it with another Helicoil. I took the opportunity to also Helicoil one of the studs on #4, which had also unscrewed. The thread in the head was looking "less than optimal". I then also noticed (!!) that #2 needed attention; this was a stud which was snapped when I bought the car, and was "fixed" using a Timesert as one of the first jobs I asked a specialist to do. Clearly it hadn't been installed as well as it should've been, as the Timesert has unwound itself when trying to undo the nut; the crush nut clearly offering more resistance than the Timesert locking feature.

http://img.photobucket.com/albums/v2...d/IMG_2543.jpg

So, a third Helicoil required. All very easy to do with the engine out....a pig to do in-situ, so thankful I found the issues now.

Interestingly, in doing some research as to whether Helicoils are stronger than Timeserts, I found this >> "Helicoil or Timesert,
which is stronger?"

Some interesting stats in that forum posting from some people who have direct first-hand knowledge. And I have to also say, that I've never had a Helicoil fail on me; perhaps not install cleanly, but they're easily removed. A Timesert kit is also £100 for the tools with 5x M8 inserts. Not cheap, but if the evidence was such that it was way stronger, then of course, I'd buy it....but that isn't the evidence that I'm finding, so I'm sticking with Helicoils. If it's good enough for vast quantities to be used on Boeing 747's and Rapier missiles, then it's good enough for my exhaust studs!

Finally last night I was able to refit the heatshielding that sits behind the exhaust silencer, and then the front tinware apron. The shield needed a little reworking, as I'm now using the TK turbine shield on the turbo, and now looks neater with that rework.

Looking good, I think we're now ready to install the engine into the chassis in a few weeks time. Pics of the new ECU mounting tray over the weekend....
