Please Post your "twin plug" engine bay
Just curious how all your twin plug engine bays look.

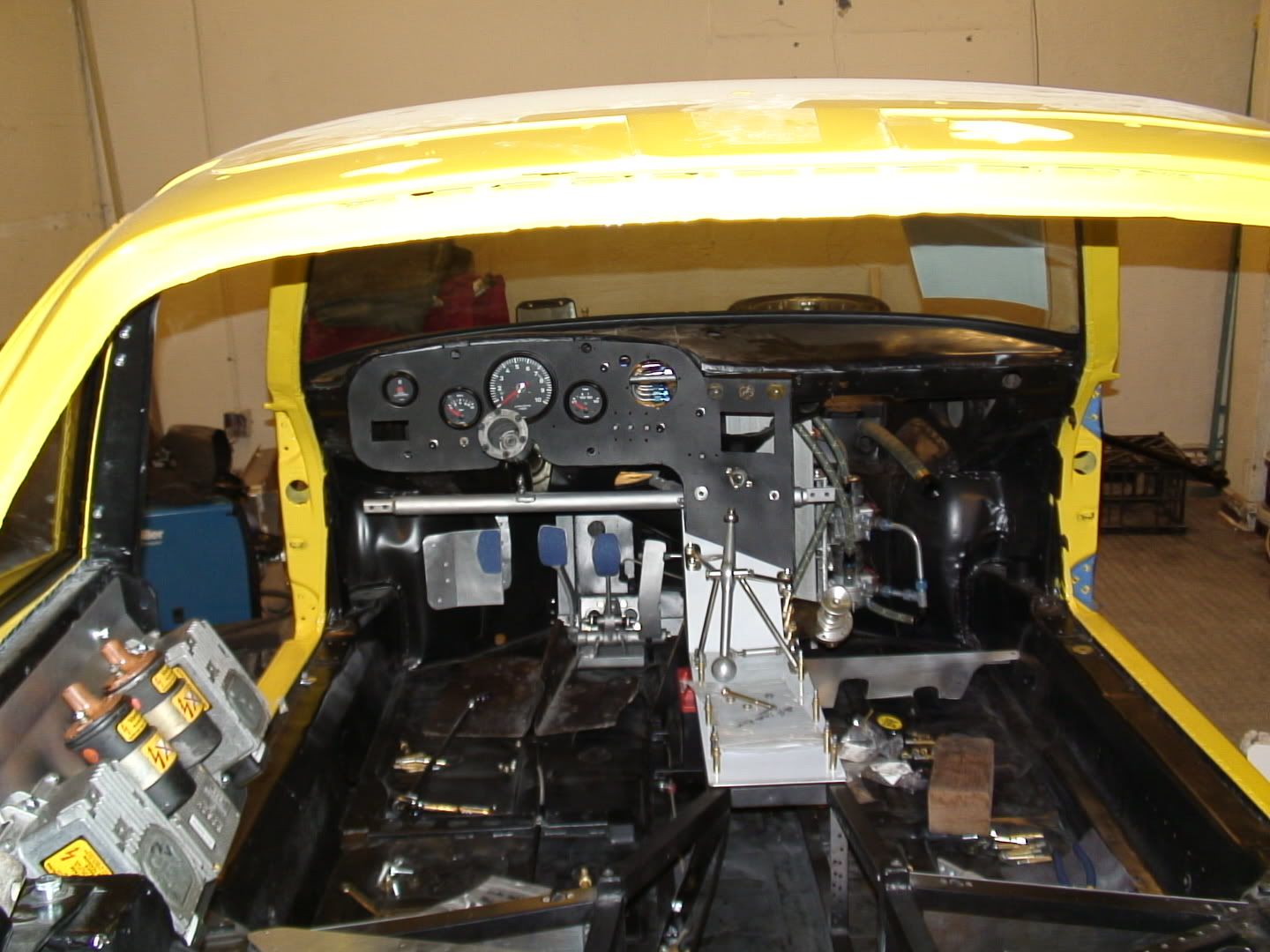

I am mounting my MSD boxes in the car, so where do you mount the coils? How do you route the wires? How do you route the wires to the bottom side? Through the tin?
__________________
1967 911R "Clone" Race Car 2.0 & 2.5 Twin Plug 1984 Mercedes 500 SEC 1991 Mercedes 420 SEL 1992 Ford F-350 Dually 28' Pace Trailer |
||
10-11-2006, 07:27 AM
|
|
|
Registered
Join Date: Apr 2005
Location: Foat Wuth
Posts: 408
|
DFU Mounting Bracket

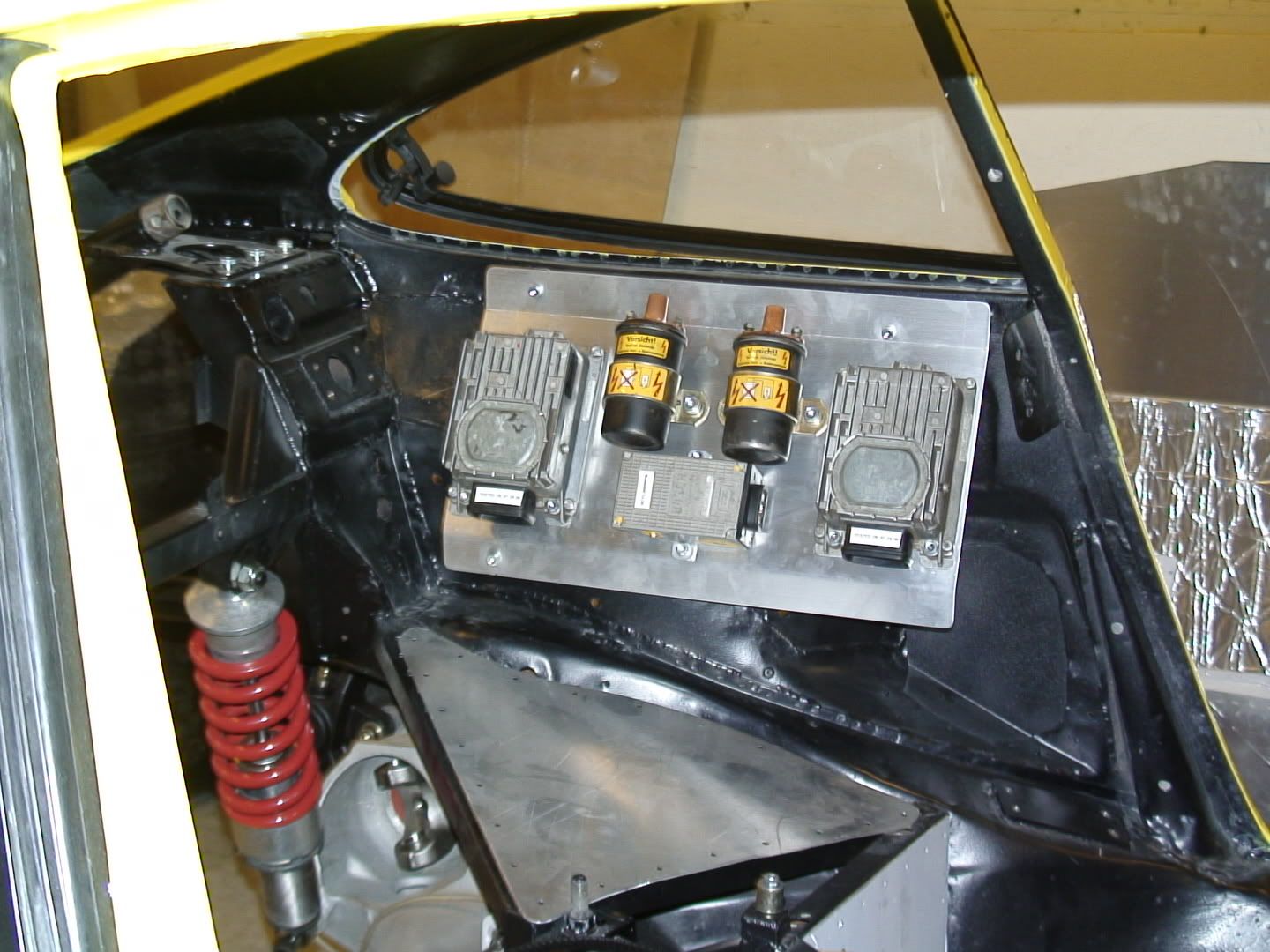

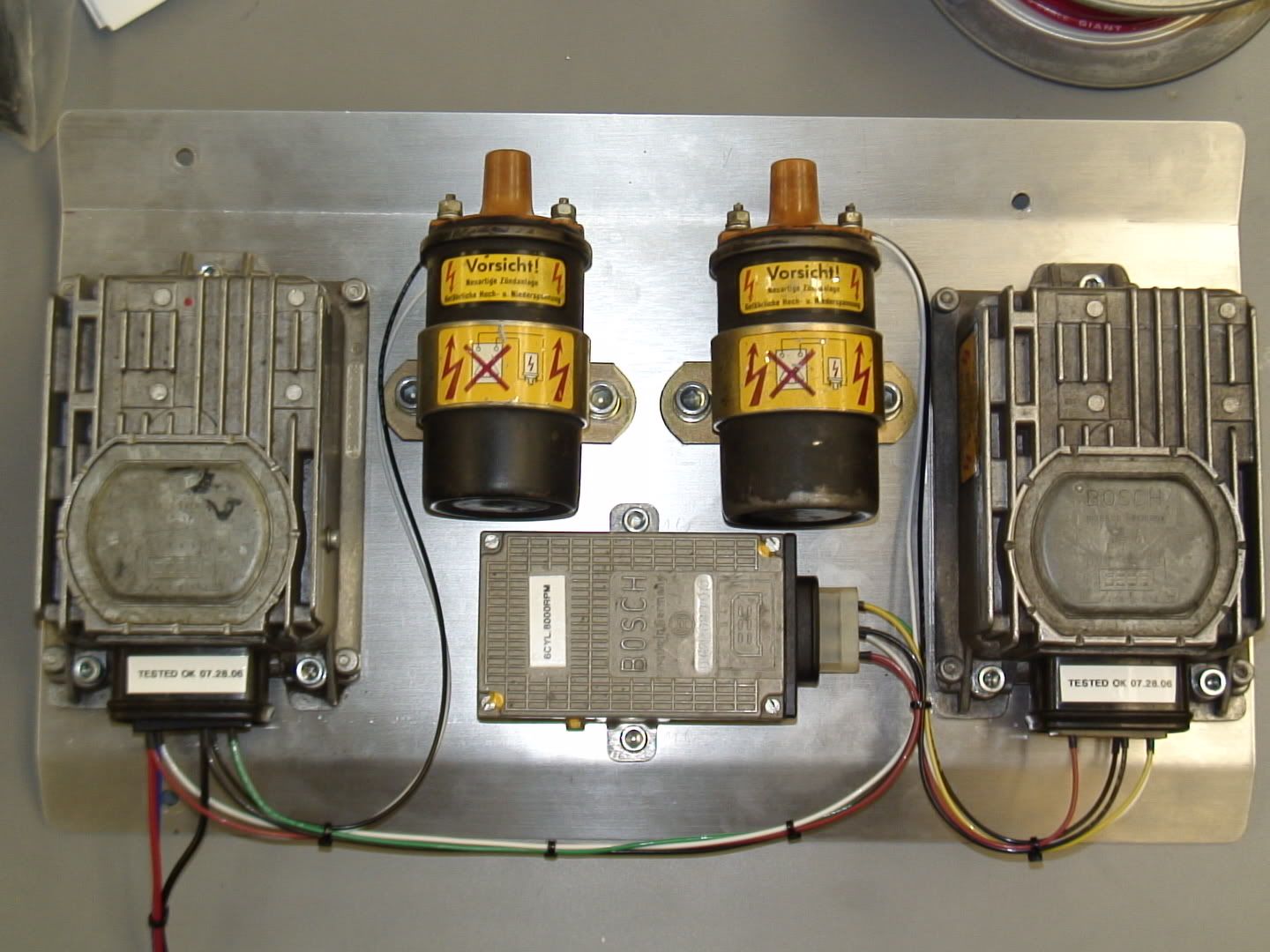

Here's a pic of my DFU's (coils) mounted and a pic of the aluminum bracket:

__________________
1980 911SC - 2nd Rebuild in Process - 2005 Porsche Cayenne Turbo - 2013 VW R ________________________ 2000 BMW X5 - 1996 BMW 530i - Toy 4 Runner (x2 or 3) - 1987 Toy Supra - 1988 Honda Si - 1984 El Camino Super Sport - MGA - MGB - Fiat 124 Spyder - Fiat 128 Wagon - 1962 Karmann Ghia - 1951 VW - 1953 Willys Jeepster w/Chevy 286 - 1995 Volvo 960 - 2006 VW GTI |
||
|
10-11-2006, 07:54 AM
|
|
|
Registered
|
Here's my setup with a modified 964 distributor. Coils mounted to the fan ring and one CDI in the stock location with the other in the back near the firewall. For the lower wires, I have holes drilled in the tin with rubber O-rings to protect the wires. With this method you need to pull the connector off to route the wires. You will also need to use "keepers" on the bottom to keep the connectors in place (I'll look for a pic of those and post if I find it).
Last edited by JP911; 10-11-2006 at 08:26 AM.. |
||
|
10-11-2006, 08:22 AM
|
|
|
Registered
|
Here's a shot of the lower setup showing where the wires are routed and the "keepers".
|
||
|
10-11-2006, 08:28 AM
|
|
|
Registered
Join Date: Mar 2004
Location: US
Posts: 1,621
|
None of these pics are of my car, but I have accumulated them over the years:

|
||
|
10-11-2006, 08:51 AM
|
|
|
user & abuser
|
hey, my engine bay isn;t as nice as i want it to be, and its getting close to my birthdy and christmas, so things will be changing (cf bling?)...
but here it is, electromotive coils/crank fire ignition...love the setup in combo with carbs..... damn pic is too big....
__________________
vini vidi vici Last edited by Facey; 10-11-2006 at 11:07 AM.. |
||
|
10-11-2006, 10:43 AM
|
|
|
|
Registered
Join Date: Jan 2003
Location: Dublin, CA
Posts: 6,281
|
Here's my setup:
__________________
Sergio The GT Lid Whisperer PCA 42yrs - National DE Instructor / Ex-RGruppe #197 '19 718 Cayman S (9th Porsche/1st with PDK) '14 Subaru Forester XT (Porsche support vehicle) |
||
|
10-11-2006, 11:06 AM
|
|
|
Registered
|
Thanks Guys! Are those wire holders on the fan shroud a factory part? If so what model ect.?
__________________
1967 911R "Clone" Race Car 2.0 & 2.5 Twin Plug 1984 Mercedes 500 SEC 1991 Mercedes 420 SEL 1992 Ford F-350 Dually 28' Pace Trailer |
||
|
10-11-2006, 12:03 PM
|
|
|
Registered
|
there available through Henry at Supertec, and IIRC, they appeared on the RSR.
__________________
Bill G. '68 911 Ossi Blue coupe |
||
|
10-11-2006, 01:25 PM
|
|
|
Registered
|
How can i find IIRC? Googled it no luck
__________________
1967 911R "Clone" Race Car 2.0 & 2.5 Twin Plug 1984 Mercedes 500 SEC 1991 Mercedes 420 SEL 1992 Ford F-350 Dually 28' Pace Trailer |
||
|
10-11-2006, 01:28 PM
|
|
|
Registered
Join Date: Mar 2004
Location: US
Posts: 1,621
|
IIRC = if I remember(ed) correctly
|
||
|
10-11-2006, 01:38 PM
|
|
|
Registered
Join Date: May 2004
Location: Encinitas (San Diego CA)
Posts: 4,495
|
Here's the 993 coil packs. They are mounted on large rubber isolators 1.5" diameter.
Excuse the blow up of my 14 pin connector.
__________________
1971 RSR - interpretation |
||
|
10-11-2006, 02:40 PM
|
|
|
Navin Johnson
Join Date: Mar 2002
Location: Wantagh, NY
Posts: 8,818
|
not a real close up of the engine bay, but you get the idea.
The coils are mounted on a platform between the throttle bodies
__________________
Don't feed the trolls. Don't quote the trolls  http://www.southshoreperformanceny.com '69 911 GT-5 '75 914 GT-3 and others |
||
|
10-11-2006, 03:14 PM
|
|
|
Registered
Join Date: Dec 2001
Posts: 4,313
|
3.4 twin plug w/46mm Webers. '75 Carrera RS look race car.
|
||
|
10-11-2006, 03:31 PM
|
|
|
Doesn't want/need a 3.6L
|
Doesn't really apply with your specifications, but here's my Motronic version of twin plug:
 Twin coils mounted in the original location of the single coil with a fabricated bracket:  Holes drilled in engine tin to run the lower wires through with rubber grommets sourced from Lowe's just down the street from you.   Just about ready to go back into the car:  Ralph |
||
|
10-11-2006, 05:11 PM
|
|
|
Registered
Join Date: Oct 2003
Location: Loveland, COLO
Posts: 710
|
Here are some pics of a coil on plug setup.

__________________
1978 race car scca GT2 1998 C2S sold 1996 C4S sold 1973 911 T restored with 2.7 RS running gear 1970 911 E Project |
||
|
10-11-2006, 05:31 PM
|
|
|
Registered
Join Date: Feb 2003
Location: Orange County, California
Posts: 1,257
|
Quote:
SCHWIIIIING! What type of COP units are those? |
||
|
10-11-2006, 05:37 PM
|
|
|
Registered
Join Date: Oct 2002
Location: Minneapolis
Posts: 775
|
Wire clamps / management
Both of these wire clamps look different than:  the garden variety from http://www.mcmaster.com/ page 1374.  Is this the part from Henry at Supertec? 89turbocabmike.....drool...drool...me too. Bob Last edited by Fleming; 10-11-2006 at 06:00 PM.. |
||
|
10-11-2006, 05:58 PM
|
|
|
Me like track days
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 10,209
|
Hey Mink - I'll bet I can help.
I have the *same* setup:
__________________
- Craig 3.4L, SC heads, 964 cams, B&B headers, K27 HF ZC turbo, Ruf IC. WUR & RPM switch, IA fuel head, Zork, G50/50 5 speed. 438 RWHP / 413 RWTQ - "930 is the wild slut you sleep with who tries to kill you every time you "get it on" - Quote by Gabe Movie: 930 on the dyno |
||
|
