Porsche Crest Center-Mount Variable Turbo Conversions are here...

Some of you may have been following this turbo conversion over the course of it’s development. Those who have know that we’ve been working on this project for about a year testing everything imaginable to reach maximum performance. We’ve tested several different turbine/compressor combinations, turbo orientations, charge tube designs, header layouts, collector designs, and list goes on. All of our testing has been done with full data-logging on the street (daily commute), the track, and the dyno. Being one who has been around the 930’s for a long time (former Imagine Auto guy here) it really put a smile on my face to make this turbo conversion a reality after joining the team at Aerocharger. Transforming the 930 from a car that struggles to pass modern cars on the highway to a force to be reckoned with by a simple bolt-on conversion has truly been a satisfying experience. For those who have been waiting patiently as we perfected this conversion, I’m glad to tell you that the wait is finally over, as we will be shipping the first production round later this week.



Here are a few key details about this turbo conversion:

-Full boost and max torque is reached before 2,500rpm

-Easily adjustable vanes to allow the end user to effectively control the responsiveness of the turbo

-Boost is easily adjustable from .8 BAR to 1.25 BAR (depending on your max altitude)

-Compatible with any stock or aftermarket intercooler setup

-Compatible with any fuel system be it CIS or EFI

-Mellow exhaust tone, no droning while cruising

-Fits neatly under any stock or aftermarket bumper.

-Available with or without heat package

-Complete package with everything you need for installation including hardware and gaskets



This now-famous dyno chart shows the .8 BAR comparison between our system (purple) and several runs with a bone stock 930 (green, light green, and blue). For those who haven’t seen this chart before it should be pointed out that all dyno runs were at stock boost levels. Notice the torque curve comparison (dashed lines represent torque) between stock and our turbo conversion. Where the stock 930 didn’t hit peak torque until 4,500rpm, we managed to hit peak torque just before 2,500rpm and nearly carry it all the way to 4,500rpm. This drastically improves drivability, especially on the street. It should also be pointed out that the stock turbo system struggled to even break the 200hp mark before 4,000rpm, which is unacceptable. We were pleased to hit break 200hp almost 2,000rpm faster than the factory. Those who have had the opportunity to drive our test car were blown away by the performance and responsiveness. Many were convinced it was a fully built motor running high boost and couldn't believe it was a simple bolt on package at stock boost levels. This turbo conversion is truly something that must be experienced to completely understand the difference in power delivery. It's a completely different car.



Many of you out there are already at least familiar with the Aerocharger turbo. For those who have never heard of us, Aerocharger, LLC is a family owned, engineer-based operation located in Kansas City where we preceision build every one of our turbos here in-house with the latest cutting edge equipment. We produce the world’s only self-contained variable-vane turbocharger as well as turbo systems for all types of machines including cars, small engines, off-road vehicles, military UAV’s, and even cryogenics (we are not, however, associated with Aerodyne or their products) We build all of our turbochargers specifically to order, ensuring the highest possible quality in our products.



Included in the conversion:

- 66-Series 224/300 VATN Aerocharger
- Turbine Heatshield w/ Insulator
- Stainless Steel Muffler Section (Ceramic coated & Polished)
- Stainless Steel 934-Inspired Exhaust Manifold
- Stainless Steel Heat Exchanger (heat option only)
- Stainless Steel Muffler Support Bracket
- Stainless Steel Turbo Support Bracket
- Aluminum Turbo Inlet Adapter Pipe & 4-ply Silicone Couplers
- Aluminum Turbo Outlet Adapter Pipe & 4-ply Silicone Couplers
- Billet Intercooler Adapter Bulkhead
- Billet Factory Turbo Oil Line Block-Off Plugs
- Heater Ducting (heat option only)
- OEM Exhaust Manifold Gaskets
- Turbo Gaskets
- Steel-Braided Turbo Signal Line
- Mounting Hardware
- Hose Clamps
- Zip Ties
- Aerocharger Turbo Oil (2)
- Installation Manual

Pricing:

Complete bolt-on package w/ heat: $6,500
Complete bolt-on package w/o heat: $6,200

Forum discount for the first five orders off the forums: $500-off

To order, feel free to call us at 913.541.0200

Questions and comments are always welcome of course.

Links:

In-depth with the Aerocharger Technology

The Aerocharger 930 Center Turbo Conversion

930 development posts on the Aerocharger Blog
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com

Last edited by No_Lag; 03-10-2011 at 05:53 AM.. Reason: added more information
Old 03-09-2011, 08:22 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #1 (permalink)
Registered User

Join Date: Nov 2004
Location: The Netherlands, Europe
Posts: 144
There is only one size turbocharger?
Old 03-09-2011, 08:57 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #2 (permalink)
Registered User

mark houghton's Avatar

Join Date: Jul 2008
Location: Central Washington State
Posts: 3,733
Looks like a very well designed package with exciting possibilities. Too bad you can't also offer a standalone turbo only that would be a direct bolt-on replacement in a stock K27 housing configuration.
__________________
Mark H. 1987 930, GP White, Wevo shifter, Borla exhaust, stock everything else. The result of a massive Pelicanite good will fire recovery effort. Truely an open book, ready for the slippery slopes to modification.
Old 03-09-2011, 09:05 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #3 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Our turbocharger physically does not fit in the factory location. We have tried several different exhaust manifold designs, beginning with the stock location and there was simply no way the header would be efficient enough for our standards. The radius of the bends required to get the turbo in the stock location would be very tight, reducing velocity of the exhaust. Creating a lot of turbulence right before the turbine is a situation that should be avoided at all cost. The final version of the turbo system (shown above) is by far the most efficient and responsive configuration.

As for the turbo sizing we do have several other compressor/turbine combinations for the 66-series however the 224/300 is the best match for the 930. However the vanes being adjsutable allows for the optimum turbine size and ideal geometry at any given RPM.
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-09-2011, 09:25 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #4 (permalink)
Registered User

jbrown's Avatar

Join Date: Mar 2006
Location: highland mills NY
Posts: 552
Man that is assume. I wish I had 6000 to get it but it will have to go on my wish list. Can't wait to see when someone bolts one on to a worked motor to see how it is... So who is going to be the first one to give it a try..
Old 03-09-2011, 10:10 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #5 (permalink)
Registered User

Join Date: Nov 2004
Location: The Netherlands, Europe
Posts: 144
Quote:
Originally Posted by No_Lag View Post
As for the turbo sizing we do have several other compressor/turbine combinations for the 66-series however the 224/300 is the best match for the 930.
A best match doing only 300 hp is not what I personally am looking for tbh.
Now, if you could use that technology to make a high hp flow model (say 70-75 lbs/min) with a spool like a smaller turbocharger...
Old 03-09-2011, 10:49 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #6 (permalink)

Registered User

spence88mph's Avatar

Join Date: Jan 2007
Location: Melbourne, Australia
Posts: 1,577
Looks like a great package, if you add up decent headers, fresh turbo, wastegate and muffler you're in your costing ballpark, I don't think it sounds expensive.

Maybe do some 0-60, rolling start times and 1/4 mile runs to really show the potential and how 300hp aint 300hp, it's got a power curve you'd see in a GT3!

Good luck with sales, you've certainly put the effort in.
__________________
'89 911 M491+Turbo
'89 944 Turbo
'88 928S4
'18 C63S Coupe
Old 03-09-2011, 01:22 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #7 (permalink)
Crotchety Old Bastard

RarlyL8's Avatar

Join Date: Jan 2000
Location: Huntsville, AL
Posts: 13,408
Garage
I may have to build a custom y-assembly and try one of these with my headers. Can these turbos be clocked?
__________________
RarlyL8 Motorsports / M&K Exhaust - 911/930 Exhaust Systems, Turbos, TiAL, CIS Mods/Rebuilds
'78 911SC Widebody, 930 engine, 915 Tranny, K27, SC Cams, RL8 Headers & GT3 Muffler. 350whp @ 0.75bar
Brian B. (256)536-9977 Service@MKExhaust Brian@RarlyL8
Old 03-09-2011, 01:41 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #8 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Quote:
Originally Posted by spence88mph View Post
Maybe do some 0-60, rolling start times and 1/4 mile runs to really show the potential and how 300hp aint 300hp, it's got a power curve you'd see in a GT3!
Exactly, once the weather warms up a bit more we have plans for several videos to better express the power delivery.

Quote:
Originally Posted by Beetspeed View Post
A best match doing only 300 hp is not what I personally am looking for tbh.
The dyno chart above represents .8 BAR boost levels on each setup. This system is capable of up to 1.25 BAR. With that said the 300hp mark is simply a starting point. Also consider that dyno chart represents a stock intercooler, stock cams, stock ignition, CIS, etc. We did this on purpose, we even specifically did all of our testing on a 4-spd car to take one of the absolute slowest 930's and turn it into a proper sports car with serious power delivery.

Spence88mph is right though. It's not always about making the highest power numbers, it's about the power curve
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-09-2011, 01:54 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #9 (permalink)
Dixie Boost Hooligan

turbo3six's Avatar

Join Date: Nov 2005
Location: South Florida
Posts: 268
Looks very interesting. Will headers also be available w/heat?
__________________
72 911 T 3.0 / 73 911 3.0 turbo
74 BMW 2002 TI
79 930 / 84 911 Turbo
87 911 Carrera Coupe
87 911 Turbo / 94 911 Turbo 3.6
Old 03-09-2011, 02:46 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #10 (permalink)
Registered User

oilonly's Avatar

Join Date: May 2008
Posts: 1,148
Very nice work. Very well thought out product.
__________________
'87, Modified WUR, Billet valve, 965 downpipe, Kokeln intercooler, GHL headers, Garrett T04B K27 hybrid, Tial w/.8 bar, WEGO IV, RarlyL8 dual out, LSD
Old 03-09-2011, 03:30 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #11 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Quote:
Originally Posted by turbo3six View Post
Looks very interesting. Will headers also be available w/heat?
Yes, this system is available with or without a heat package
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-10-2011, 05:44 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #12 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
In fact here is an example of our header with the heat box installed. We utilize a single, split outlet on the heat box to allow for plenty of access to the oil drain plug on the case.

__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-10-2011, 08:35 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #13 (permalink)
Registered User

Join Date: Mar 2011
Posts: 471
Very nice. What type of muffler is that? A Magnaflow can?
Old 03-12-2011, 11:18 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #14 (permalink)
surfpangea

Sam Matthews's Avatar

Join Date: Jan 2008
Location: cathedral city california
Posts: 239
Garage
I have been saving my pennies for a twin turbo setup but this is looking very promising indeed not enough pennies yet but soon very soon.
__________________
MB CL 600 6liter V12 daily driver
86 Corvette Stage 1 Nos (sold)
78 911sc Targa (sold)
77 930 stock 3.0 gsf header ,borla exhaust,gt30 BB turbo, V-band, full bay IC,WMI, 46 mm Adjustable waste-gate,Zeitronix wideband, Intergrated Car pc, Winlog interface Beta
Old 03-12-2011, 12:41 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #15 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Quote:
Originally Posted by 911TT33 View Post
Very nice. What type of muffler is that? A Magnaflow can?
We had this muffler made specifically for this application, though we did use a Magnaflow on the prototype. The production mufflers very well mannered during cruising with no drone on the highway. However when you open the taps it has a nice, powerful tone.

We'll be putting together some videos soon. Unfortunately it decided to snow on us again here so that will have to wait a bit longer.
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-14-2011, 06:05 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #16 (permalink)
Registered User

pdqcarrera's Avatar

Join Date: Jul 2001
Posts: 307
Garage
Hmmm, interesting. If and when you get >/= to 400 Hp I'll likely become a customer.

What grade stainless steel are you using for the headers and heatboxes and how is the turbo lubricated?
Old 03-14-2011, 12:03 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #17 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Quote:
Originally Posted by pdqcarrera View Post
Hmmm, interesting. If and when you get >/= to 400 Hp I'll likely become a customer.

What grade stainless steel are you using for the headers and heatboxes and how is the turbo lubricated?
See this post from above:

Quote:
Originally Posted by No_Lag View Post
The dyno chart above represents .8 BAR boost levels on each setup. This system is capable of up to 1.25 BAR. With that said the 300hp mark is simply a starting point. Also consider that dyno chart represents a stock intercooler, stock cams, stock ignition, CIS, etc. We did this on purpose, we even specifically did all of our testing on a 4-spd car to take one of the absolute slowest 930's and turn it into a proper sports car with serious power delivery.
As stated, the 300hp represented in the dyno chart is only an example of what this turbo setup is capable of at stock boost levels. Once you turn up the boost and add a few things like a more efficient intercooler and intake, ignition, fuel system, etc. then you are talking about making some serious power.

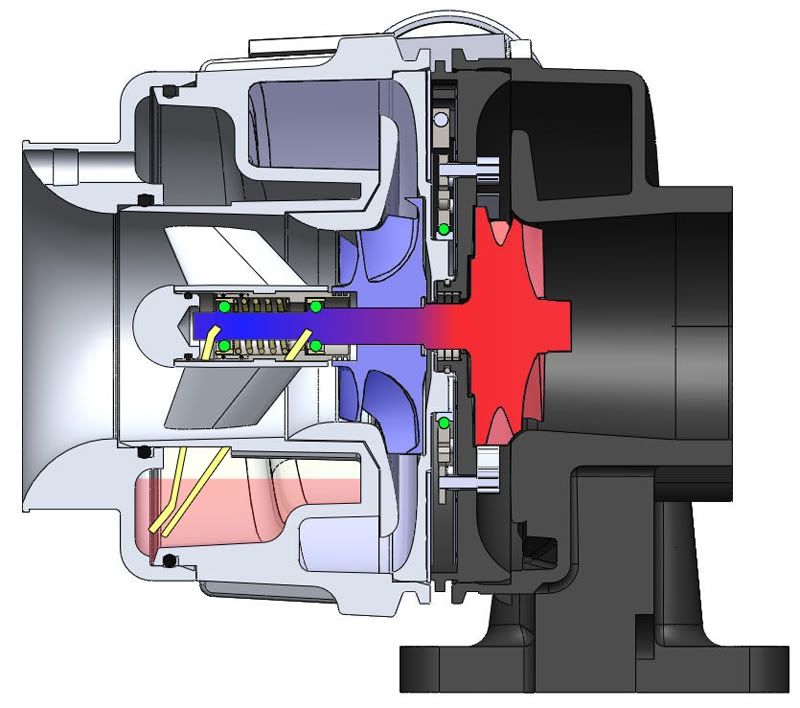

As for the lubrication it is quite simple and effective. To best explain, lets take a look at this image again:



The green represents the triple ceramic ball bearings. The pink in the reservoir is the high-speed bearing oil and the yellow represents the "wicks". The rotation of the bearings pulls oil through the "wicks" and mists the bearings as they rotate. This allows for the lowest friction possible while warranting the fastest response. This provides a huge advantage over the flooded bearing design found in conventional turbochargers and even the Borg-Warner units found on the 997. This is also a loss oil system so the oil level will gradually reduce over time. Typical service interval requires the end user to top-off the oil about once yearly. The oil reservoir can be filled my simply removing a plug on the face of the compressor housing (see port on top of the compressor inlet in the image above). The third bearing array in the image is for the vane actuator assembly which utilizes a highly durable dry-film lubricant which lasts the life of the turbocharger. This bearing array is also protected by a dual layer heat insulator, which also greatly reduces heat transfer from the turbine housing to the compressor housing.

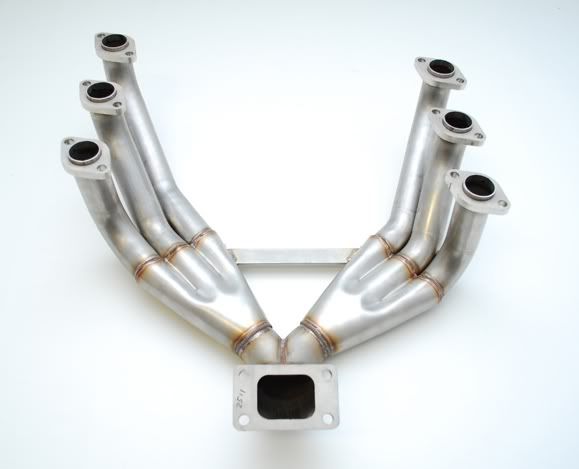

The headers are low carbon 304 and welded with 308 rod. They are purged from the inside while welding to ensure smooth surfaces for exhaust flow. We also offer the option of a polished ceramic coat finish on the headers as well.
__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-15-2011, 09:14 AM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #18 (permalink)
Registered User

Join Date: Mar 2011
Posts: 471
Very cool indeed. Do you have smaller Variable Vane turbo's sized for TT applications?
Old 03-15-2011, 01:00 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #19 (permalink)
Variable Turbo Specialist

No_Lag's Avatar

Join Date: Oct 2009
Location: Kansas City
Posts: 63
Garage
Quote:
Originally Posted by 911TT33 View Post
Very cool indeed. Do you have smaller Variable Vane turbo's sized for TT applications?
Of course:

__________________
Collin@aerocharger.com
Research & Development
The World's Fastest Spooling Turbochargers
www.AEROCHARGER.com
Old 03-15-2011, 01:20 PM
  Pelican Parts Catalog | Tech Articles | Promos & Specials    Reply With Quote #20 (permalink)
Reply

Thread Tools
Rate This Thread
Rate This Thread:




All times are GMT -8. The time now is 01:59 PM.



Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2018, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts LLC - Posts may be archived for display on the Pelican Parts Website -    DMCA Registered Agent Contact Page


DTO Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
