SWB adjustable spring plates and alignment
I began a new project this weekend; I'm modifying my shortened 911SC spring plates to have a screw adjustor like Sway Away no longer makes. I'm also beginning a four wheel alignment and corner balance using the corner scales and simple string alignment aid I made and will be marketing shortly; more on that later.

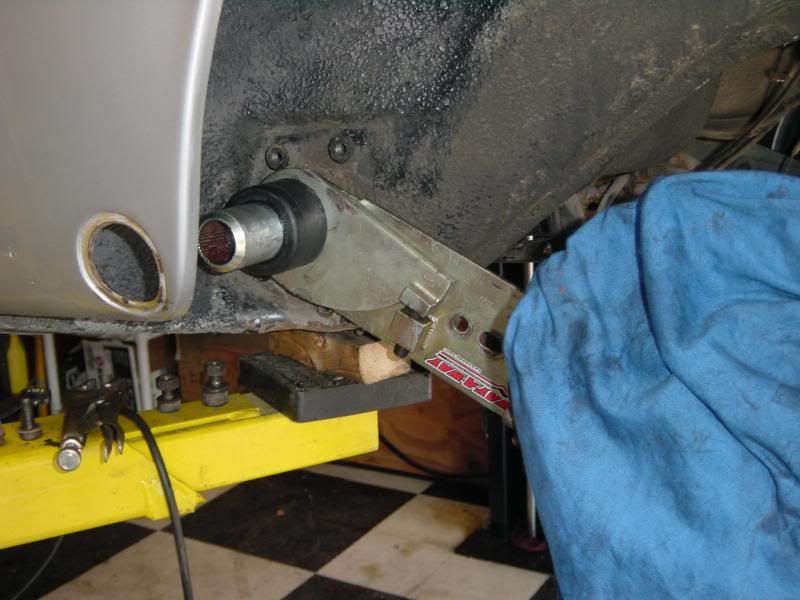

I first removed rear shocks and installed my height adjusting rods:  I also disconnected my front sway bar drop links and connected them to the brackets on my inner wheel well:  I adjusted rear ride height while supporting front cross member to avoid corner weight bias:  Made a CAD drawing and templates for modifying the spring plates:  And:  Photo of brackets aligned on spring plates ready for welding:  That's all for today.
__________________
Paul Abbott Weber service specialist www.PerformanceOriented.com |
||
11-10-2013, 03:24 PM
|
|
|
Registered
|
Nice springplates! I love DIY
__________________
Roland 930 Turbo '81 Too many modifications to list |
||
|
11-10-2013, 11:00 PM
|
|
|
Project Addicted
Join Date: Jul 2012
Location: Eastern Shore. MD
Posts: 919
|
LOVE these on my '66 912.
Took some grinding of the screw mount and the lug it presses on to make 205's not rub.  I can send pic of the grinding if needed. I can also measure it too.
__________________
Jon 1966 912 1976 911 3.4 Backdate Project 1986 944 |
||
|
11-11-2013, 07:03 AM
|
|
|
Registered
Join Date: Feb 2008
Posts: 1,438
|
Hi Jon,
I think I'm good, I checked tire clearance before I removed for the surgery. Running 225/50-15's on 7Rs with spacers.
__________________
Paul Abbott Weber service specialist www.PerformanceOriented.com |
||
|
11-11-2013, 09:54 AM
|
|
|
Banned
Join Date: Nov 2007
Location: Rockwall, Texas
Posts: 8,559
|
Quote:
|
||
|
11-11-2013, 10:02 AM
|
|
|
Registered
Join Date: Oct 2008
Location: Canberra, Australia
Posts: 686
|
Paul how did these finish up?
|
||
|
04-23-2014, 07:59 AM
|
|
|
|
Registered
Join Date: Feb 2008
Posts: 1,438
|
I installed and adjusted my car using these just fine. I need to make one more iteration in ride height that is beyond the range of adjustment but haven't gotten there yet.
__________________
Paul Abbott Weber service specialist www.PerformanceOriented.com |
||
|
04-23-2014, 10:21 AM
|
|
|
Registered
Join Date: Oct 2008
Location: Canberra, Australia
Posts: 686
|
BTW how are you using the height adjust rods
|
||
|
04-23-2014, 08:29 PM
|
|
|
Registered
Join Date: Feb 2008
Posts: 1,438
|
I used the rigid links to adjust ride height and alignment and then installed t-bars and adjusted to just take the load ff the links.
I made the links for use in assembly and other tasks during my build as a convenience to hold the car at ride height while working on it...this is primarily why I had the links in the first place.
__________________
Paul Abbott Weber service specialist www.PerformanceOriented.com |
||
|
04-24-2014, 11:19 AM
|
|
|
Project Addicted
Join Date: Jul 2012
Location: Eastern Shore. MD
Posts: 919
|
Paul, can you provide some details for your mod??
Thickness of ne blocks? Bolt size and threads? A PDF of the drawing of the plate for modifications?? I know it's asking a lot be we want to perform this mod on our project car and love the DIY aspect.
__________________
Jon 1966 912 1976 911 3.4 Backdate Project 1986 944 |
||
|
08-05-2014, 06:50 AM
|
|
|
Registered
Join Date: Feb 2008
Posts: 1,438
|
Contact me via m business email and I can get drawings to you. Performance Oriented
__________________
Paul Abbott Weber service specialist www.PerformanceOriented.com |
||
|
08-05-2014, 02:39 PM
|
|
|
Registered
Join Date: May 2004
Location: Boulder, Colorado
Posts: 7,275
|
Paul - those ride height links look like just the thing for locking the suspension and figuring out the center of gravity.
|
||
|
