Thumbs up O2 Sensor Connector Crumbled, $1300 Replacement Part???

Here is another Contribution in re-payment for all the help on this Great Forum! Thanks Pelicans!

All right guys, you've changed your 02 Sensor only to find the male connector crumbled as soon as you pulled off the old sensor rubber cover. Revealing a green wire and stab. What the Duck


What the Heck do you do? Take out the electrical tape, silicon glue, or even cut the brand new O2 Sensor rubber sleeve so that you can insert the stab?

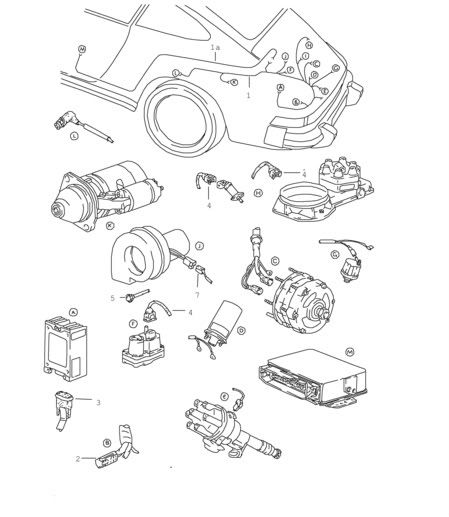

Unfortunately that yellowish plastic part is not replaceable and one must invest $800-1300, yes $800-1300 to replace the entire harness which is connected to the DME, UNACCEPTABLE! (Thanks SloDave for the info) Part area #1


Here is my humble fix:

Total Cost = $1.29 USD

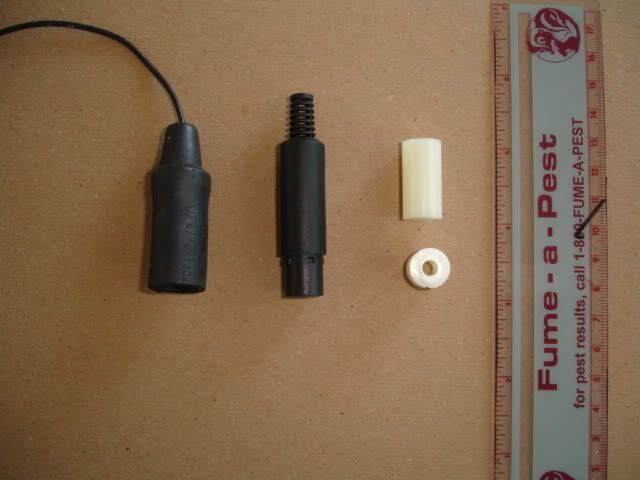

1" Nylon Spacer $0.33 (1"x1/2"x 1/8 dia. whole)
1/2" Nylon Spacer $0.30 (1/2"x1/2"x1/8 dia. whole)
Male DIN 8 Pin Connector $0.63 (only need the sleeve to fit the 1/2" outer diameter of the spacers)
Sales Tax: $0.03

1. Take off the rest of the yellowish plastic, it is dust anyways.


2. Crazy Glue/ Epoxy the the spacers together

Note: There must be a good reason for the engineers to put so much rubber around that connection. Errand sparks i.e. electrical fire? I do believe it is the heating wire for the O2 Sensor (Vets please correct me if I am wrong)

3. Using a carving/engraving Dremel tool, cut an 1/8' slot down the side center and a divet to match the locking divet in the New O2 Sensor. Use a clamp for better support


4. Bevel the the two ends so it will slide into the new O2 Sensor's protective rubber sleeve and the DIN 8 Pin Sleeve, It will make your Mod Part slip on more easily while working in the engine compartment. You may choose not to use the DIN 8 Pin Sleeve but I figure I would add extra insulation for this area.

I used a bit of lube on the DIN 8 Pin side to make sure it won't be difficult to slip on inside the engine compartment. The new O2 Sensor side is perfect, just don't over dremel the divet, test to fit.

5. Test with old O2 Sensor

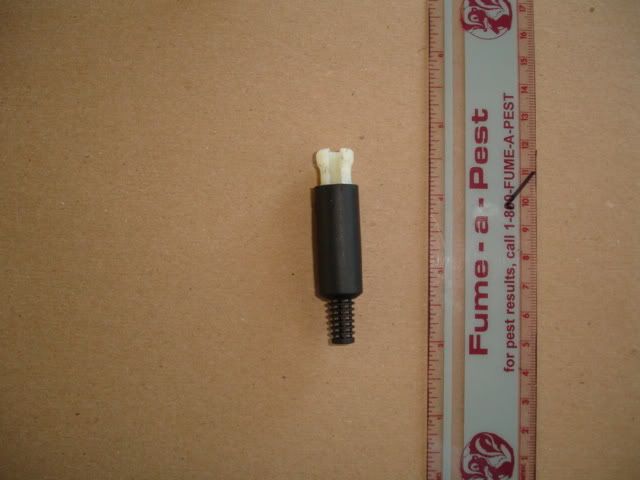

Note the stab is a hair wider then the 1/8" whole but with the slot, it will fit. I decided to use liquid electrical tape to ensure the stab and wire will stay in place.

Caution, It is tight in there becareful not to damage the 3 plugs on the brass harness, the one with the CHTS and Ref/Speed Sensors. I detached and moved them out of the way. It allows more room to manuveur.

I tested this with only a 1/2" sloted spacer it worked but was too short to be supported by the bracket. this new 1.5" length is almost the same length of the OEM.

Break a Leg.
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC

Last edited by DRACO A5OG; 01-30-2008 at 11:57 PM..
Old 01-30-2008, 11:27 PM
  Pelican Parts Technical Article Directory    Reply With Quote #1 (permalink)
Registered User

3.2 CAB's Avatar

Join Date: Dec 2003
Location: MS.
Posts: 2,322
Nice fix!! Those damn connectors seem to fail on every German made car, that I have seen them on. BMW, Mercedes, and Porsche use that same connector. Piss poor quality of compound used for the connector.
__________________
84' Steelslantnose Cab.
1953 Dodge B-4-B-108" 90,127 miles
1953 Dodge B-4-C-116" 58,146 miles
1954 Dodge C-1-B8-108" 241V8 POLY
1973 Roadrunner 440-SIX-PACK*
1986 F-250 Super Cab-460 V8 tow
Newest additions-
Matching numbers 1973 340 Road Runner!!
1948 Dodge B-1-F-152" 1-1/2 ton Dump body, 39,690 miles
others...
Old 01-31-2008, 07:40 AM
  Pelican Parts Technical Article Directory    Reply With Quote #2 (permalink)
Registered User

Nickatnyt's Avatar

Join Date: Jul 2005
Location: Spokane, WA
Posts: 490
I hope mine doesnt crumble. All be darned if I would never remember this post down the road if it did. But just in case, thanks for sharing your handiwork!
__________________
1982 SC...Guards Red + Linen
Old 01-31-2008, 08:34 AM
  Pelican Parts Technical Article Directory    Reply With Quote #3 (permalink)
Registered User

WI wide body's Avatar

Join Date: Aug 2007
Location: Milwaukee
Posts: 2,431
Good posts. Question:

On the 3.2 Carrera engine what are the symptoms when the O2 Sensor has failed?
Old 01-31-2008, 09:07 AM
  Pelican Parts Technical Article Directory    Reply With Quote #4 (permalink)
Member 911 Anonymous

DRACO A5OG's Avatar

Join Date: Sep 2007
Location: Rancho Palos Verdes
Posts: 13,525
Garage
Send a message via Skype™ to DRACO A5OG
According to the Bentley guide:

Engine does not start or starts hard
Erratic Idle
Poor Acceleration

Also CO Levels and Idle Speed adjustment incorrect
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC
Old 01-31-2008, 02:28 PM
  Pelican Parts Technical Article Directory    Reply With Quote #5 (permalink)
Get off my lawn!

GH85Carrera's Avatar

Join Date: Nov 2007
Location: Oklahoma
Posts: 44,961
Garage
One simple question is where did you get the nylon spacers? Is this a home improvment store, auto parts store or Ace Hardware part? Where can I find these parts. One thing for sure it is not the Porsche dealer.
__________________
Glen
40 Year member of the Porsche Club of America
1985 911 Carrera; 2017 Macan
1986 El Camino with Fuel Injected 350 Crate Engine
My Motto: I will never be too old to have a happy childhood!
Old 02-01-2008, 04:25 PM
  Pelican Parts Technical Article Directory    Reply With Quote #6 (permalink)
Member 911 Anonymous

DRACO A5OG's Avatar

Join Date: Sep 2007
Location: Rancho Palos Verdes
Posts: 13,525
Garage
Send a message via Skype™ to DRACO A5OG
Quote:
Originally Posted by GH85Carrera View Post
One simple question is where did you get the nylon spacers? Is this a home improvment store, auto parts store or Ace Hardware part? Where can I find these parts. One thing for sure it is not the Porsche dealer.
Home Depot, hardware section in the Specialty Hardware Drawers, I think Ace has them too, can't be sure. There are plenty of them
As far as the Protective Sleeve, an Electronics Supply Store, in a loose poop bin. Becarefull the rubber RCA sleeve are too tight the DIN sleeve fits the best.

Break a Leg!
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC

Last edited by DRACO A5OG; 02-01-2008 at 04:39 PM..
Old 02-01-2008, 04:36 PM
  Pelican Parts Technical Article Directory    Reply With Quote #7 (permalink)
Registered User

Join Date: Dec 2006
Posts: 6,391
Ace has them in the fastener section. Great job Draco!
__________________
O2 RIP Mr. Rooney
Old 02-01-2008, 04:40 PM
  Pelican Parts Technical Article Directory    Reply With Quote #8 (permalink)
Member 911 Anonymous

DRACO A5OG's Avatar

Join Date: Sep 2007
Location: Rancho Palos Verdes
Posts: 13,525
Garage
Send a message via Skype™ to DRACO A5OG
Just Contributing to the P-Community, I feel Communist Now :?
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC
Old 02-01-2008, 04:46 PM
  Pelican Parts Technical Article Directory    Reply With Quote #9 (permalink)
Registered User

Join Date: Nov 2000
Location: Dallas
Posts: 3,074
Are these pictures still available?
__________________
Buck
'88 Coupe, '87 Cab,
'88 535i sold '07 A4 sold, '14 C250 DD
Warren Hall, gone but not forgotten
Old 11-07-2008, 07:47 AM
  Pelican Parts Technical Article Directory    Reply With Quote #10 (permalink)
Registered User

dshepp806's Avatar

Join Date: Dec 2006
Location: Middle Georgia
Posts: 4,551
Garage
Quote:
Originally Posted by 88911coupe View Post
Are these pictures still available?
ditto...

Doyle
__________________
Recording Engineer, Administrator and Entrepeneur
Designer of Fine Studios, Tube Amplifier Guru
1989 Porsche 911 Carrera Coupe
25th Anniversary Special Edition
Middle Georgia
Old 11-07-2008, 01:44 PM
  Pelican Parts Technical Article Directory    Reply With Quote #11 (permalink)
Member 911 Anonymous

DRACO A5OG's Avatar

Join Date: Sep 2007
Location: Rancho Palos Verdes
Posts: 13,525
Garage
Send a message via Skype™ to DRACO A5OG
Oh Crap what happened to my Pics?

Let me see if I still have them
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC
Old 11-07-2008, 02:43 PM
  Pelican Parts Technical Article Directory    Reply With Quote #12 (permalink)

Now Available for Ordering:   101 Projects For Your BMW 3 Series 1982-2000  [more info]
Registered User

Halm's Avatar

Join Date: Jan 2002
Location: VA
Posts: 3,216
Draco, did you ever find the pictures for this thread. I am in need now too.

Thanks.
__________________
2005 997
2013 Cayenne
Old 08-14-2009, 02:06 PM
  Pelican Parts Technical Article Directory    Reply With Quote #13 (permalink)
Registered User

80-911SC's Avatar

Join Date: Feb 2009
Location: STOCKTON CA
Posts: 2,121
Garage
mine just did the same thing last week , did an earlier posted "bullit fix yours sounds better

sure wish there was a picture , if you find the can you rpost or take one of final result , thanks
Old 08-14-2009, 06:48 PM
  Pelican Parts Technical Article Directory    Reply With Quote #14 (permalink)
Registered User

Join Date: Apr 2003
Location: Simsbury, Ct.
Posts: 267
Just a minor "bump" until the pics show up.
__________________
JUAN
'80SC Targa
Old 08-15-2009, 04:34 AM
  Pelican Parts Technical Article Directory    Reply With Quote #15 (permalink)
Registered User

80-911SC's Avatar

Join Date: Feb 2009
Location: STOCKTON CA
Posts: 2,121
Garage
bump,bump ... draco photo please , ... .
Old 08-16-2009, 08:09 AM
  Pelican Parts Technical Article Directory    Reply With Quote #16 (permalink)
Registered User

Join Date: Jun 2009
Posts: 490
Looks like you moved them to their own directory (DRACOA5OG > 911 > 911 Project > O2 Sensor). Is this them?











Old 08-16-2009, 10:14 AM
  Pelican Parts Technical Article Directory    Reply With Quote #17 (permalink)
Member 911 Anonymous

DRACO A5OG's Avatar

Join Date: Sep 2007
Location: Rancho Palos Verdes
Posts: 13,525
Garage
Send a message via Skype™ to DRACO A5OG
Yeap, that'll be it.

Caution, make certain the crimp is not falling apart.

I ended up using insulated male and female "Bullet" connectors. I had some shorting issues so was forced to solder mine crimps to allow for a good signal.

I understand from some that you do not want to solder, but in my case I had to,
__________________
'85 Carrera Targa
Factory Marble Grey/Black * Turbo Tail * 930 Steering Wheel* Sport Seats * 17" Fuchs (r) * 3.4 * 964 Cams * 915 * LSD * Factory SS * Turbo Tie Rods * Bilsteins * Euro Pre-Muff * SW Chip on 4K DME * NGK * Sienes GSK * Magnecor * Targa Body Brace
PCA/POC
Old 08-17-2009, 09:54 AM
  Pelican Parts Technical Article Directory    Reply With Quote #18 (permalink)
Registered User

Join Date: Jun 2009
Location: Chicago
Posts: 157
For future reference, Bosch makes a universal O2 sensor that mathces the characteristics of the OEM sensor. THe part numbers are:

15725 ( 0258005725)...universal type
15726 ( 0258005726)...universal type

I forget which one I got (one has a longer harness than the otehr). This kit includes a very nice, sealed connector that will perform as well or better than the stock. I got this for a bit less than $50 at the local auto parts store. These part numbers were recommended by Bosch as a replacement for our engines.

They use the rubber connectors because the O2 sensor is designed to pull reference air through the wire. The best practice for designers is to keep the wire connection air tight through the harness and let it pull air from the intrior of vehicle. This is way it is suggest not to solder, as the rubber can melt and possibly hamper the air flow through the wire. The sensor does not require much air and it is able to pull what it needs through the wire.
